Choosing Between Hot-Melt and Solvent-Coated Adhesives for Surface Protection Films
Introduction: Why Your Adhesive Choice Defines Film Performance
When specifying a surface protection film for a manufacturing line, most procurement managers focus on substrate compatibility, film thickness, and peel force—but overlook the single variable that governs all three: the adhesive coating method. Two dominant technologies compete for industrial applications today: hot-melt adhesive (HMA) coating and solvent-coated adhesive systems. The choice between them affects not only initial bond strength and cleanroom cleanliness, but also your facility's compliance posture, energy footprint, and total cost of ownership.
This technical guide breaks down both technologies from a manufacturing engineer's perspective—covering process parameters, performance envelopes, residue risk, UV and chemical resistance, and the specific industrial verticals where each adhesive class excels. For a curated selection of protection films optimised for B2B production environments, see our full film catalogue.

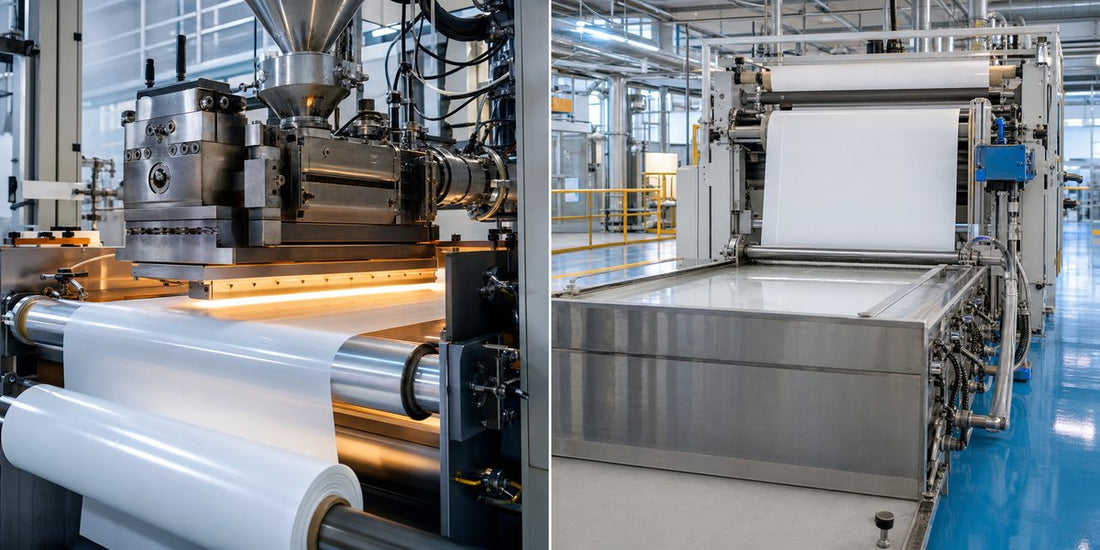

How the Two Processes Work
Hot-Melt Adhesive Coating
Hot-melt adhesives are 100% solid thermoplastic formulations—containing no water or organic solvents—that are melted to a low-to-medium viscosity (approximately 750–10,000 centipoise) and applied to the film substrate in molten form, typically via slot-die extrusion or roll-transfer heads. Application temperatures normally range from 120 °C to 180 °C, depending on the polymer class: EVA-based systems process at the lower end (around 120–140 °C), while polyamide and polyolefin grades approach 160–180 °C, as documented in Henkel's TECHNOMELT adhesive data. Once the coated film contacts the cooler substrate, the adhesive solidifies rapidly—typically within seconds—producing an immediately handleable laminate without the need for drying ovens or solvent-recovery systems.
The slot-die extrusion approach, as detailed by Conversion Technologies International, enables precise coat-weight control across wide web widths, which is essential for consistent peel performance in protective film applications. Because HMA is applied from the melt, line speeds can exceed 200 m/min on modern equipment—a throughput advantage relevant to high-volume shipping and packaging film production.
Solvent-Coated Adhesive Coating
Solvent-based adhesives dissolve a polymer—most commonly an acrylic or natural/synthetic rubber—in a carrier solvent such as toluene, ethyl acetate, or methyl ethyl ketone (MEK). The solution is applied to the film web via comma bar, reverse gravure, or knife-over-roll coating heads. The solvent then evaporates in a multi-zone drying oven, leaving a dry adhesive layer bonded to the film surface. This process is performed at ambient to moderately elevated temperatures (typically 60–120 °C drying zones), with the adhesive activation occurring at room temperature during application to the protected surface.
Solvent-coated systems deliver exceptionally uniform, thin adhesive layers (typically 15–40 µm dry) and are the preferred route for formulating high-tack, optically clear, or specialty-chemistry PSA layers. However, the process generates significant volatile organic compound (VOC) emissions. Common solvents—toluene, xylene, and ethyl acetate—are subject to EPA regulation under the National VOC Emission Standards programme, as outlined in EPA stationary source guidelines. Facilities must implement thermal oxidisers or solvent-recovery systems to comply, adding capital and operating costs that are frequently underestimated at the procurement stage.
Comprehensive Comparison: HMA vs Solvent Acrylic vs Solvent Rubber
The table below benchmarks the three most prevalent adhesive systems across nine performance parameters critical to industrial protection film selection. Data ranges are drawn from industry references including H.B. Fuller adhesive technology documentation, AIMCAL/Adhesives.org converter benchmarks, and peel-force data collected under the ASTM D3330 peel adhesion test standard.
| Parameter | Hot-Melt (EVA/PO-based) | Solvent Acrylic | Solvent Rubber |
|---|---|---|---|
| Application/Coating Temperature | 120–180 °C (melt extrusion) | Room temp (oven drying 60–120 °C) | Room temp (oven drying 60–100 °C) |
| Typical Peel Strength (ASTM D3330, 180°) | 5–30 N/25 mm | 3–15 N/25 mm | 5–25 N/25 mm |
| Initial Tack | Medium–High | Medium | High |
| Adhesive Residue / Ghosting Risk | Medium (can transfer at elevated temps >60 °C) | Low (clean removal, minimal migration) | High (oxidation & migration on long dwell) |
| UV / Weathering Resistance | Low–Medium (EVA yellows; PO-based better) | Excellent (photostable polymer backbone) | Poor (UV degrades rubber rapidly) |
| Chemical Resistance | Good (oils, water); swells in citrus/D-limonene | Excellent (acids, alkalis, solvents) | Fair (degrades in aromatic solvents) |
| VOC Content | 0% (solvent-free) | 20–50% (toluene, ethyl acetate) | 30–60% (toluene, hexane) |
| Heat Resistance (service temperature) | 50–100 °C (EVA: ~65 °C; PO: ~100 °C) | 80–120 °C | 60–90 °C |
| Relative Production Cost | Low–Medium (no solvent recovery needed) | Medium–High (oven + recovery system) | Medium (lower-cost polymer, high VOC cost) |
| Primary Industrial Applications | Shipping/transit protection, packaging, building films | Automotive OEM, appliance, glass protection | Masking tapes, general industrial protection |
Deep Dive: Performance Parameters That Matter to Engineers
Peel Strength and Tack Control
For a protection film, the adhesive must provide enough tack to prevent wind lift and edge lifting during fabrication, yet release cleanly without leaving residue on finished surfaces. Under ASTM D3330 standardised peel testing, typical HMA-coated protection films exhibit 180° peel forces in the 5–30 N/25 mm range. The wide spread reflects formulation latitude: a low-molecular-weight EVA compound can be tuned toward 5–8 N/25 mm for delicate glass surfaces, while a polyolefin-based compound can be pushed to 20–30 N/25 mm for corrugated metal panels that see handling abuse.
Solvent acrylic PSAs typically fall in the 3–15 N/25 mm band at equivalent coat weights—lower initial tack, but with highly predictable peel profiles across temperature ranges from -20 °C to +100 °C. This thermal stability makes solvent acrylics the preferred choice when a film must be applied in a cold warehouse and then removed after passing through an automotive paint oven, where surface temperatures can momentarily reach 80–90 °C.
Solvent rubber adhesives (natural or SBR/SIS block copolymer) offer the highest immediate tack—critical for adhering to low-energy polyolefin surfaces—but exhibit the least consistent long-term peel because rubber oxidation and creep increase force over time, raising the risk of adhesive transfer on prolonged-dwell applications.
Residue Risk and Surface Contamination
Adhesive residue—commonly called "ghosting"—is the defining failure mode for protection films in precision manufacturing. Nagase Chemtex's adhesive engineering analysis identifies two distinct mechanisms in HMA-coated films:
- Thermal transfer: EVA-based hot melts typically soften above 50–65 °C. Films left on metal panels in direct sun (surface temperatures can exceed 60 °C in summer) may experience adhesive flow and consequent transfer to the substrate.
- Filler migration: Some HMA formulations contain calcium carbonate or petroleum-wax modifiers; these can penetrate microporous or painted surfaces under prolonged dwell, causing contamination that affects subsequent coating adhesion or solder wetting.
Solvent acrylic adhesives have a significantly lower residue risk because the crosslinked acrylic polymer does not flow or oxidise at service temperatures. This is why solvent acrylic is the dominant choice for automotive OEM body protection, where paint finish integrity is non-negotiable. Solvent rubber adhesives carry the highest residue risk of the three categories: natural rubber oxidises over time, and oxidation products are prone to migrating into paint or anodising layers, particularly on aluminium extrusions and polished stainless steel.
UV and Weathering Performance
Outdoor construction sites and open-yard metal fabricators expose protection films to weeks or months of direct UV. Acrylic polymer chains, whether solvent-coated or UV-curable HM-PSAS, contain photostable ester linkages that resist chain scission under UV radiation—as supported by American Coatings Association weathering research and noted by AIMCAL converters switching to solvent acrylic or UV-HM acrylic PSAs. EVA-based HMAs, by contrast, contain vinyl acetate groups that degrade (yellow) under UV, progressively reducing bond stability and leaving a yellowed residue on light-coloured surfaces after extended outdoor exposure. Rubber-based adhesives perform worst in UV environments: the carbon-carbon backbone of natural and synthetic rubbers is susceptible to ozone and UV attack, with measurable bond-strength loss within 4–8 weeks of outdoor exposure depending on UV intensity.
VOC Emissions and Regulatory Compliance
This is where HMA carries an unambiguous advantage for modern manufacturing facilities. Hot-melt adhesives are 100% solid—meaning zero VOC content by formulation, as confirmed by H.B. Fuller's hot-melt product documentation. There are no reportable VOC emissions, no solvent-recovery infrastructure, and no Title V permitting obligations (applicable when a facility emits more than 100 tons/year of regulated VOCs). For factories in non-attainment ozone regions covered by the EPA's National VOC Emission Standards programme, this difference translates directly to simplified environmental permitting.
Solvent-coated adhesive lines, in contrast, typically operate with solvent formulations containing 20–60% volatile carriers. Toluene (a common carrier in rubber-based systems) is classified as a hazardous air pollutant (HAP) under the Clean Air Act and is associated with neurological and hepatic effects from chronic occupational exposure, as documented by the Adhesives & Sealants Industry review of non-toxic solvent alternatives. Ethyl acetate, while a lower-hazard option used in many acrylic formulations, still requires proper mechanical ventilation, personal protective equipment, and waste-stream management.
Process Economics: Capital and Operating Costs
The total cost picture is nuanced. HMA coating lines require a precision hot-melt delivery system (heated tank, gear pump, slot-die head with temperature uniformity to ±2 °C), and tooling changes can be time-consuming. However, there is no drying oven, no solvent-recovery condenser or thermal oxidiser, and no hazardous waste disposal. The energy footprint is concentrated in the short heating zone rather than extended drying tunnels. For high-volume commodity protection film production, the lower long-term operating cost of HMA—cited across multiple converter benchmarks—generally outweighs the higher initial tack and polymer cost of solvent acrylic systems.
Solvent coating lines carry substantial capital investment in explosion-proof oven zones, make-up air systems, and solvent recovery (or abatement) equipment. However, they offer superior coat-weight uniformity at very low application levels (below 10 g/m²), which is difficult to achieve with high-viscosity HMA. For specialty films requiring ultra-thin adhesive layers—such as optical display protection or medical-grade masking films—solvent acrylic remains the preferred production route.
Application-Specific Guidance for B2B Procurement
Shipping and Transit Protection
For films protecting metal coils, panels, extruded profiles, and fabricated parts during transportation and storage, HMA-coated PE or PP films are the standard. The process speed, solvent-free production, and tunable peel range (5–20 N/25 mm) match the requirements: films need to adhere through vibration and humidity cycling, then peel cleanly at the end customer's facility. Most general-purpose transit films on the market use EVA or modified polyolefin HMA formulations at coat weights of 8–25 g/m².
Automotive OEM Body and Glass Protection
Automotive body panels entering assembly lines require films that resist paint-oven temperatures (80–90 °C), peel cleanly from primer and topcoat finishes without ghosting, and offer UV stability for outdoor staging areas. Solvent acrylic PSA films are the industry specification here. OEM programmes from Tier-1 automotive suppliers—citing H.B. Fuller and Henkel polyamide grades for structural bonding and acrylic PSAs for masking—specify peel forces in the 5–12 N/25 mm range with no residue after 180-day outdoor dwell.
Appliance and White-Goods Protection
Refrigerators, washing machines, and HVAC units receive stainless steel or pre-painted steel protection films from the mill through to final appliance assembly. These applications typically specify solvent acrylic films for their clean-removal performance on brushed stainless finishes and higher service-temperature tolerance (80–120 °C in lacquering ovens). Some appliance manufacturers accept low-tack HMA films for short-dwell (under 30 days) warehouse protection where cost is the primary driver.
Construction and Architectural Glass
Window glass, aluminium curtain-wall panels, and architectural cladding require films that will remain intact through months of construction exposure—UV, rain, and mechanical abrasion—then release without streaking. Solvent acrylic is specified for long-dwell glass protection applications due to UV stability. For shorter-dwell applications on site (under 60 days, shaded installation), UV-stabilised HMA films offer a cost-competitive alternative with the added sustainability benefit of zero solvent content.
Decision Framework: Choosing the Right Adhesive System
The following questions provide a practical decision path for procurement engineers and quality managers:
- What is the intended dwell time? Under 30 days → HMA acceptable; 30–180 days → solvent acrylic preferred; over 180 days → solvent acrylic mandatory.
- Will the film see direct UV exposure? Yes → solvent acrylic or UV-stabilised HMA; No → standard HMA is viable.
- What surface finish must be protected? Polished, anodised, or automotive paint → solvent acrylic only; standard mill finish metal or glass → HMA or solvent acrylic.
- Are VOC emissions a compliance concern? In regulated zones → HMA strongly preferred; in facilities with existing solvent abatement → either acceptable.
- Is the service environment above 65 °C? Yes → avoid standard EVA HMA; choose polyolefin HMA or solvent acrylic; above 100 °C → solvent acrylic only.
- What is the production volume and cost sensitivity? High volume, cost-driven → HMA; specialty/low-volume requiring thin coat weight → solvent acrylic.
Quality Assurance: Testing Your Film Selection
Regardless of adhesive type, qualification should include peel testing per ASTM D3330 at the intended application and removal temperatures, a residue/ghosting assessment after the design dwell period under expected ambient conditions, and UV aging per ASTM G154 (accelerated weathering) or equivalent for outdoor applications. For automotive supply chains, OEM-specific test protocols (commonly a combination of peel, shear, and tape-residue assessment on production-spec substrates) supplement these standards.
Verifying actual coat weight by gravimetric measurement and cross-sectional microscopy ensures the adhesive layer is consistent across the roll width—a particularly important check for solvent-coated films, where oven temperature gradients can create coating non-uniformity at web edges.
Conclusion
Hot-melt and solvent-coated adhesives are not interchangeable—each represents a distinct engineering trade-off optimised for specific application requirements. HMA delivers fast processing, zero VOC emissions, and excellent cost economics for high-volume transit and general industrial protection. Solvent acrylic excels wherever UV stability, clean removal from sensitive surfaces, or high-temperature service is required. Solvent rubber retains a niche in short-dwell masking and low-cost general taping, but its residue risk and UV sensitivity limit its role in precision protection applications.
Understanding these trade-offs at the film-specification stage—rather than discovering them at product-return or quality-complaint stage—is what separates informed procurement from reactive purchasing. If you need help selecting or qualifying the right protection film adhesive system for your production line, our technical team is ready to assist.
