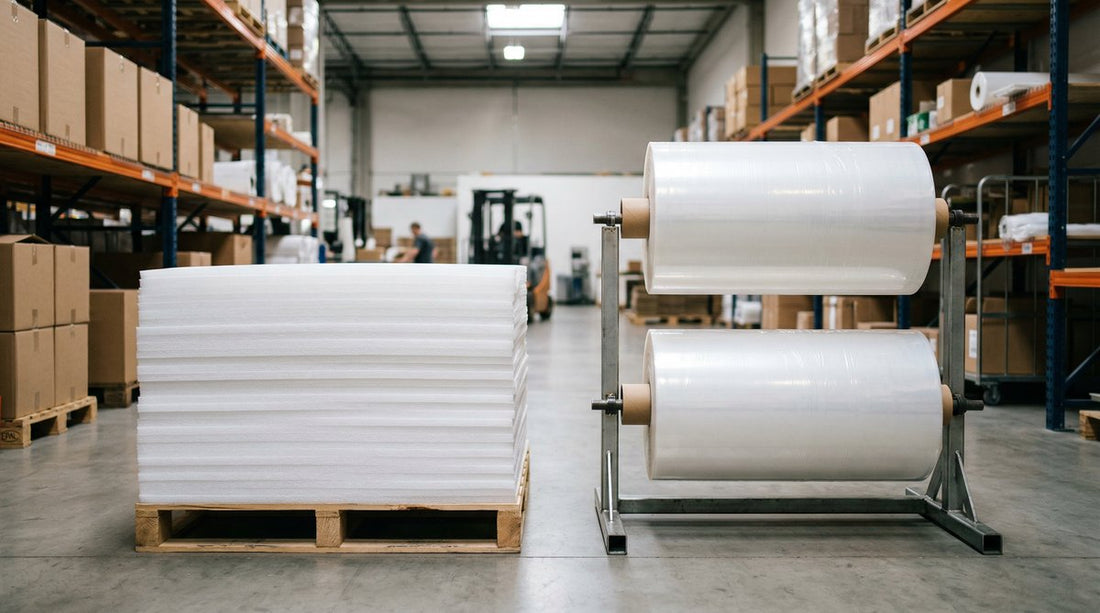

EPE Foam vs Protective Film: When to Use Which

April 7, 2026

Choosing between EPE foam and a protective film is one of the most practical decisions a procurement manager or quality engineer makes when designing a packaging specification. Both materials ship product safely — but they solve different problems, work at different cost points, and respond to different risk profiles. Getting the match wrong means either over-spending on cushioning you don't need or under-protecting a surface that will reach your customer with a scratch.

This guide breaks down the key differences between EPE foam, PE protective film, and PET protective film, so your team can select the right material the first time.

What Is EPE Foam?

Expanded polyethylene (EPE) foam is a non-crosslinked, closed-cell foam produced by physically foaming low-density polyethylene resin. The result is a lightweight, resilient material composed of millions of independent air cells. Those cells are what make EPE foam effective: they compress under impact, absorb energy, then recover — giving the material its characteristic multi-impact protection capability.

EPE foam is available in a wide density range. Standard industrial grades run from approximately 18 to 28 kg/m³, while high-density variants reach 35, 64, or even 96 kg/m³ for applications requiring firmer support under heavier loads. Thickness in sheet or roll form typically ranges from 0.3 mm to 60 mm, with custom laminated thicknesses achievable beyond that.

Key inherent properties of EPE foam include:

Impact and shock absorption — the closed-cell structure compresses and rebounds repeatedly without permanent deformation
Vibration dampening — particularly valued for precision electronics, optical components, and machined metal parts
Moisture resistance — the closed-cell matrix does not absorb water, making EPE suitable for humid warehouses and sea-freight containers
Chemical inertness — EPE does not react with most industrial coatings, anodized finishes, or powder-coated surfaces
Clean-room compatibility — no dusting, no flaking, no static cling, which protects polished or painted surfaces from contamination
Reusability — EPE recovers its shape after compression, making it viable for closed-loop returnable packaging systems

According to LAMATEK, EPE's closed-cell structure gives it "exceptional shock absorption" while remaining resilient enough for multi-drop protection — a performance characteristic that rigid foams such as EPS cannot match after the first impact event.

What Are PE and PET Protective Films?

Protective films are thin polymer sheets — typically self-adhesive — applied directly to a product surface to prevent scratches, dust, abrasion, and light contamination during manufacturing, transit, and storage. They are not cushioning materials; they are surface-preservation tools.

PE Protective Film (Polyethylene Film)

PE protective film is the most widely used surface-protection film in industrial manufacturing. It is made from low-density or linear low-density polyethylene and typically supplied with a pressure-sensitive adhesive on one side. Standard thicknesses run from 20 µm to 200 µm (0.02 mm to 0.20 mm), with the most common industrial grades falling between 40 µm and 100 µm.

The film clings to a surface, keeps scratches and dust off during the production process, then peels away cleanly without leaving adhesive residue. PE film is widely applied to aluminium profiles, stainless steel sheets, glass panels, plastic extrusions, and household appliance surfaces. It provides negligible cushioning but excellent surface-level scratch protection at very low cost per square metre.

According to CloudFilm, standard PE protective film is supplied in 30 µm to 80 µm thickness ranges, with adhesion grades matched to surface sensitivity — low-tack for glossy stainless steel, medium-tack for coated metals, high-tack for textured or rougher substrates.

PE film is also available in a range of colours (transparent, black/white, blue) and can be custom-printed, which is useful for branding or for communicating handling instructions on the product surface itself.

PET Protective Film (Polyester Film)

PET (polyethylene terephthalate) protective film is a stiffer, higher-strength alternative to PE film. Produced from biaxially oriented polyester, it offers superior dimensional stability, higher heat resistance, and better chemical resistance than PE. Thickness typically ranges from 12 µm to 250 µm, and its scratch-resistant surface makes it the preferred choice for protecting precision optical surfaces, displays, and high-gloss panels.

PET film is more expensive per unit area than PE film and is generally chosen when the protected surface has strict cosmetic requirements or when the film needs to survive elevated temperatures during downstream processing (painting, powder coating, or heat-assisted lamination). As noted by Filiriko, PET protective films "are crystal clear and provide a great scratch-resistant coating" for precision electronics, ITO film, glass, and TFT-LCD surfaces.

Head-to-Head Comparison: EPE Foam vs PE Film vs PET Film

The table below compares the three materials across the dimensions most relevant to manufacturing procurement decisions.

Property	EPE Foam	PE Protective Film	PET Protective Film
Primary protection type	Impact, shock, vibration	Surface scratch, dust, abrasion	Surface scratch, abrasion, chemical exposure
Thickness range	0.3 mm – 60 mm (custom laminated beyond)	20 µm – 200 µm (0.02 – 0.20 mm)	12 µm – 250 µm (0.012 – 0.25 mm)
Density / weight	18 – 96 kg/m³ (select grade for load)	Very lightweight; ~0.9 g/cm³	Lightweight; ~1.38 g/cm³
Cushioning / impact absorption	Excellent — multi-impact resilient	None	None
Scratch protection	Moderate (non-abrasive surface, no adhesive)	Good (adhered to surface)	Excellent (harder surface, adhered)
Moisture resistance	Excellent (closed-cell structure)	Good (surface barrier)	Good (low moisture absorption)
Heat resistance	Up to ~80°C	Up to ~60°C	Up to ~120–150°C
Recyclability	Yes — PE-based, widely recyclable	Yes — PE-based, recyclable (LDPE stream)	Yes — PET-based, widely recyclable
Reusability	High — suitable for returnable packaging	Low — typically single-use	Low — typically single-use
Relative cost (material only)	Medium–High (depends on density and thickness)	Low	Medium (higher than PE, lower than foam)
Application method	Wrapped, inserted, interleaved, custom-cut	Peel-and-stick; hand or machine applied	Peel-and-stick; hand or machine applied
Best for	Drop, impact, vibration risk; returnable packaging; heavy or fragile parts	In-process surface protection; metal/plastic panels; high-volume, cost-sensitive lines	Precision optics, displays, high-gloss surfaces; elevated-temp processing

Impact Protection vs Scratch Protection: A Fundamental Distinction

The single most important concept when selecting between foam and film is understanding that these two material categories address fundamentally different damage mechanisms.

Impact and Shock Damage

Impact damage occurs when a product experiences a sudden force — a drop, a collision, a vibration event during transit. The energy of the impact needs to be absorbed before it reaches the product. EPE foam does this through compression: the closed-cell structure collapses slightly under the force, converting kinetic energy into heat, and then rebounds. The product inside never feels the full force of the event.

A PE or PET film applied to the product surface does nothing to protect against this. The film is only a few microns thick. No amount of surface adhesion prevents a 3G drop from cracking a circuit board or denting a machined aluminium housing.

TCH Hardware notes that the closed-cell structure of polyethylene foam "allows it to absorb shocks without permanent deformation, ensuring repeated protection over multiple uses" — a key advantage over single-use alternatives in high-cycle industrial packaging systems.

Scratch and Surface Damage

Scratch damage is a surface phenomenon. It happens when an abrasive contact — another part sliding against the surface, a conveyor belt, a packaging worker's glove — physically removes micro-layers of a finish. A protective film prevents this by interposing an adhesive-backed polymer sheet between the abrasive contact and the product surface. The film takes the scratch instead of the part.

EPE foam, while non-abrasive, is not adhered to the product surface. If a part is loose inside a foam-lined box, another part or the box wall can still make contact with an exposed surface. For parts with finishing that requires zero surface marks — anodized aluminium, mirror-polished stainless steel, painted panels — the correct answer is to apply a protective film to the surface and then use foam for cushioning around the part.

The best packaging specifications for high-value manufactured parts often use both materials in combination.

Cost Analysis: Total Cost of Packaging, Not Just Material Cost

Raw material cost comparisons between EPE foam and protective film can be misleading if viewed in isolation. A more accurate analysis considers total cost of packaging per unit shipped.

PE and PET Film: Low Unit Cost, Higher Volume Consumption

Protective films are typically priced per square metre. PE film in standard industrial grades runs at very low cost per sqm, making it one of the most economical surface-protection options available at scale. However, film is single-use — it is applied at the factory and removed by the end customer or at the point of use, and then discarded. High-volume production lines consume significant quantities of film per shift.

PET film commands a price premium over PE film due to higher raw material cost and more complex manufacturing. It is justified when the performance requirements — optical clarity, heat resistance, harder scratch surface — cannot be met by PE film.

EPE Foam: Higher Initial Cost, Reusability Advantage

EPE foam has a higher initial cost per unit compared to film. However, EPE foam's resilience means it can be reused across multiple packaging cycles without loss of performance. For operations using returnable packaging or closed-loop supply chains — common in automotive, aerospace, and precision manufacturing — the cost-per-trip for EPE foam decreases substantially over its service life.

Additionally, EPE foam can be custom-fabricated: die-cut to fit specific part geometries, laminated with other materials, or supplied as standard rolls and sheets for manual wrapping. This flexibility means packaging engineers can right-size foam usage to the actual cushioning requirement rather than over-specifying.

According to FOAMTECH, EPE foam sheets are available from 1 m to 1.8 m width and 0.3 mm to 6 mm thickness as standard stock, with laminated thicknesses achievable for heavier-duty applications — giving procurement teams a wide range of cost-performance points to specify against.

Application Scenarios: When to Use Which

Use EPE Foam When:

Parts are at risk of impact or drop damage — electronics, automotive components, precision instruments, glassware, machined parts with tight dimensional tolerances
Vibration during transit is a concern — long-haul road freight, sea containers, air cargo for sensitive assemblies
Parts need interleaving between layers — sheet metal blanks, glass panels, ceramic tiles stacked in pallets
Returnable or closed-loop packaging is required — EPE foam withstands repeated use without compression set
Parts have irregular geometry — EPE can be wrapped around complex shapes or custom-cut to form-fit inserts
The packaging environment is humid — EPE's closed-cell structure resists moisture absorption

Use PE Protective Film When:

Surface finish integrity is the primary risk — aluminium extrusions, stainless steel panels, coated sheet metal, glass, painted appliances
In-process protection is needed — film can be applied at the mill or extrusion line and remain in place through forming, fabrication, and assembly
High-volume, automated application is required — PE film is compatible with automated roll-fed application systems
Cost per part must be minimised — for high-volume commodity parts where scratch prevention is the only risk
The product ships flat or in sheet form — panels, profiles, plates, sheets where impact is managed by crating rather than cushioning

Use PET Protective Film When:

Optical or display surfaces require protection — screens, lenses, ITO films, TFT-LCD panels
Downstream processing involves heat — powder coating ovens, heat-assisted lamination, annealing processes where PE film would deform
Chemical exposure is a risk — PET's superior chemical resistance protects surfaces exposed to solvents, lubricants, or cleaning agents during handling
A harder scratch-resistant surface is required — PET's stiffer surface outperforms PE film when contact abrasion risk is high

Use Both in Combination When:

High-value parts have both surface finish and impact risk — apply PE or PET film to the part surface for scratch protection, then wrap or case in EPE foam for transit cushioning
Export packaging specifications demand dual protection — particularly common for precision machined components, medical devices, and high-end consumer electronics components
Parts stack inside a container — EPE foam interleaf sheets with protective film already applied to each part is a common automotive and electronics packaging standard

Sustainability Considerations

Both EPE foam and PE/PET protective films are recyclable — all are polyethylene or polyester-based materials that fit into established recycling streams. The key sustainability difference lies in reusability: EPE foam's durability makes it viable for multiple trips in a closed-loop system, reducing total material consumption per part shipped. PE and PET films are overwhelmingly single-use, though thicker PET films can sometimes be reclaimed and recycled at the end of a manufacturing run.

For operations with ESG targets or packaging reduction mandates, designing EPE foam returnable trays with film-protected parts inside can reduce both single-use film consumption and total waste per annum — a packaging engineering approach increasingly valued by tier-1 automotive and electronics manufacturers.

Selecting the Right Material: A Decision Framework

Before specifying a packaging material, quality engineers and procurement managers should answer four questions:

What is the primary damage mechanism? — Impact or scratch? This determines whether cushioning or surface film is the primary tool.
What is the surface sensitivity? — A mirror-polished surface needs film; a rough casting does not.
What is the transit risk profile? — Road freight with multiple handling events calls for EPE foam cushioning. A flat steel sheet moving by forklift pallet likely only needs a PE film surface coat.
What is the packaging lifecycle? — Single-use export or returnable closed-loop? Lifecycle determines whether EPE foam's higher initial cost is justified.

Most manufacturing packaging systems benefit from specifying these materials by function rather than by cost alone. The right material applied to the right risk point in the supply chain reduces damage rates, lowers claim costs, and improves delivered product quality — all of which matter to procurement managers who track total cost of quality, not just material spend.
