How Reroll Operations Refresh Edge Quality: A Converter's Workflow

For converters working with aluminum protective films, a reroll operation is rarely just a housekeeping step. When performed correctly, it is a precision intervention that restores roll geometry, corrects tension profiles, and eliminates the edge defects that cause downstream problems on applicator lines. Understanding exactly what happens during a slitting reroll—and how each parameter influences final edge quality—allows procurement engineers and quality teams to set tighter acceptance criteria and get more consistent results from their film supplier.

What Is a Reroll Operation?

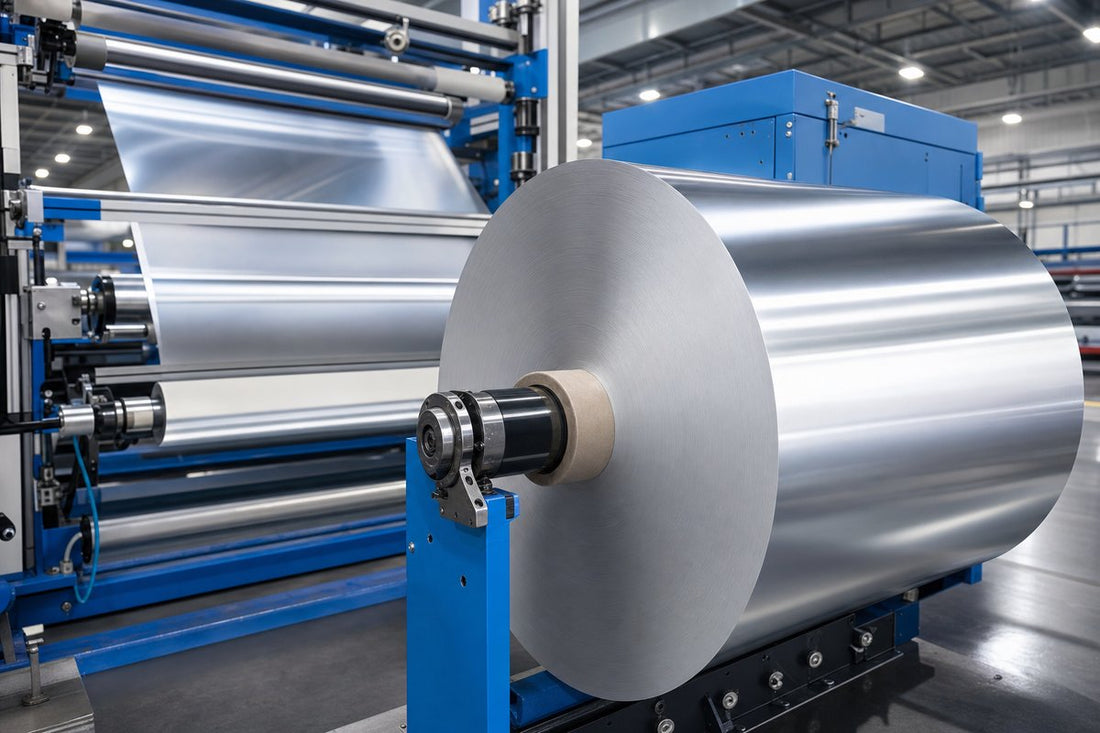

A reroll (also referred to as a doctoring pass) is the process of unwinding an existing master roll or slit roll through a rewinding machine and winding it again onto a fresh core under controlled conditions. The operation may be performed after primary slitting to correct winding defects, to re-inspect the web, or to reformat roll dimensions for a specific end-use application.

In aluminum protective film converting, rerolls are most commonly triggered by three conditions:

• Edge degradation — lifted, frayed, or unevenly trimmed edges created during initial slitting that would cause tracking problems at the application station
• Tension-induced structural defects — starring, telescoping, or dishing that results from improper tension taper during the first wind
• Width non-conformance — rolls that fall outside the specified width tolerance and require a second trim pass to recover material or achieve a narrower cut

The doctoring machine used for this process differs from a slitter-rewinder in that its primary purpose is correction rather than width conversion. It provides closed-loop tension control, precise edge-alignment guidance, and lay-on roll pressure management across the full rewind cycle. According to Eles Makina, a properly configured doctoring machine can correct tension irregularities, realign poor edge profiles, and produce a clean, uniform roll structure from a previously defective master.

How Edge Defects Form During Initial Slitting

To understand why a reroll refreshes edge quality, it is necessary to understand the mechanisms by which edges degrade during the original slitting pass. The slitting method, blade condition, and tension management all contribute to the edge profile that arrives at your facility.

Slitting Method and Edge Morphology

Three slitting methods are used commercially for aluminum protective films: razor slitting, shear cutting, and score cutting. Each produces a different edge profile and failure mode.

Slitting Method	Mechanism	Typical Edge Quality	Common Defect on Dull Tooling	Best Fit for Aluminum Film
Razor (stationary)	Single fixed blade, web passes through	Clean, dust-free on thin gauges	Micro-tears, blade deflection	Thin single-layer films (<50 µm)
Shear (circular)	Upper and lower rotating discs in shear	Very clean; precise width control	Dust, burrs from worn top knife	Multi-layer laminates, thick films
Score (crush)	Blade presses against hardened anvil roll	Acceptable on harder substrates	Fray, rolled edge on soft films	Limited use; not preferred for foil

According to Sollex, razor slitting is the most economical and precise technique for thin films and foils, delivering straight, dust-free edges when the blade geometry and web tension are dialled correctly. However, blade wear or web tension fluctuations will shift the cut line and create edge irregularities that compound through the roll depth. SlittingTech notes that fine burrs and white edges after slitting are most often caused by worn round blades, improper knife clearance, or film tension fluctuations during the cut—all of which are correctable in a subsequent reroll pass.

Tension Profile and Edge Wander

Even when blade condition is optimal, tension variation across the rewind worsens edge profile. A web under non-uniform tension will track laterally, producing a wandering edge face rather than a flat, perpendicular roll end. Industry specifications for aluminum film typically require edge wander of no more than ±0.5 mm, with overall width tolerance held to ±1 mm, as referenced in film winding quality standards commonly applied across European converting facilities.

When edge wander exceeds these limits, the roll end face presents as an irregular surface. Downstream applicator equipment—particularly automated lamination lines—uses the roll end face as a registration reference. An uneven face causes misregister, material waste, and unplanned stoppages.

The Reroll Workflow: Step by Step

A structured reroll operation restores edge quality through a defined sequence of operations. Each step addresses a specific defect mechanism.

Step 1: Pre-Reroll Inspection

Before the roll is loaded onto the unwinder, a receiving inspection identifies which defects are present and determines the correction parameters needed. Inspectors assess edge lift (bell-shaped edge turn-up), visible telescoping, surface scratches, and roll diameter consistency. JINGWEI recommends structuring this inspection across four checkpoints: surface appearance, web handling indicators, roll formation geometry, and documentation. A defect log created at this stage becomes the reference that operators use to set reroll machine parameters.

Step 2: Tension Profile Setup

Correct tension management is the most critical variable in a reroll operation. The fundamental principle, widely documented in TAPPI winding research, is that tension must be tapered as roll diameter builds. A tension taper between 0 and 50 percent is standard, with 25 percent at full roll diameter being the most common reference value. This taper prevents the compressive stress buildup in inner layers that causes starring, dishing, and edge distortion.

For narrow-width aluminum film rolls—those slit to widths below 100 mm for extrusion profile applications—the taper profile is more aggressive. Plashield Global documents that narrow-width slitting requires higher winding tension to maintain flat roll-end faces, but excessive tension on long rolls causes adhesive migration. Their solution is a tapered tension winding profile with lower tension at roll start, progressively increasing as diameter grows.

Step 3: Edge Guidance and Web Steering

Web steering equipment corrects lateral drift in real time. Modern doctoring machines incorporate CCD line recognition systems that detect edge position changes and adjust the web path at control accuracies of ±0.1 mm, as noted by JINGWEI. For aluminum film, this real-time correction ensures that the roll end face builds with uniform edge alignment across the entire length of the rewind, regardless of any residual wander from the original slit pass.

Step 4: Lay-On Roll Pressure

A lay-on roll (pressure roll) riding against the winding roll controls nip force and manages air entrapment between layers. Entrapped air creates soft spots in the roll structure and allows inter-layer slip, which in turn produces edge misalignment as the roll ages during storage and transport. Packaging Strategies identifies lay-on roll type and programming as one of the primary variables determining finished roll edge quality, specifically noting that a smooth edge without rings indicates a roll wound with consistent tension control that will perform well during unwinding.

Step 5: Final Inspection Against Specification

Post-reroll inspection verifies that the corrective pass achieved its objectives. Width is re-measured at multiple points along the roll using laser micrometers. Edge face is inspected visually and by tactile check for bell-shape (edge lift ≤3 mm acceptable per common film standards) and irregular layer shift (allowable shift ≤5 mm). Rolls that remain out of specification either require a second reroll pass or are downgraded.

Edge Quality Defect Reference for Converters

The following reference table summarizes the edge defects most commonly encountered in aluminum protective film rolls, their root causes, and the reroll corrective actions that address each:

Defect	Description	Root Cause	Reroll Corrective Action	Acceptance Threshold
Edge lift (bell edge)	Film edge turns up relative to flat roll surface	Excessive tension at roll edges; thermal cycling	Reduce edge-zone tension; adjust lay-on roll profile	≤3 mm lift
Damaged edge	Cut, frayed, or torn film at roll face	Worn or misaligned slitting blade	Re-slit with fresh blade; reroll for clean edge	No visible damage
Irregular edge (layer shift)	Single layers shifted laterally at roll face	Tension variation, web steering failure	Closed-loop web steering on reroll; re-profile tension	Shift ≤5 mm
Telescoping	Layers progressively offset axially	Insufficient taper tension; web wander	Apply 25% tension taper; increase lay-on pressure	Zero tolerance for functional rolls
Edge burrs/white edge	Fine raised material at slit line	Dull blade, incorrect knife clearance	Re-slit with correct tooling; reroll for edge consolidation	Not visible at 1 m inspection distance
Roll end dust	Fine particles accumulating at roll face	Shear cutting with blunt top knife	Replace knife; reroll with vacuum edge extraction	Zero tolerance for cleanroom applications

Process Parameters: What Quality Engineers Should Specify

When sourcing aluminum protective films for high-throughput manufacturing operations, quality engineers and procurement managers benefit from specifying reroll process parameters explicitly rather than relying solely on output tolerances. The following parameters have the greatest impact on delivered edge quality.

Tension Taper Percentage

Specify a minimum tension taper of 20–30 percent at full roll diameter for rolls above 400 mm OD. This prevents starring and dishing on large-diameter rolls that would cause edge distortion during storage or unwinding on customer lines.

Edge Wander Tolerance

A specification of ±0.5 mm edge wander is appropriate for rolls used on automated applicator equipment. This requires web steering systems with active closed-loop correction rather than passive guide rollers. Lamart identifies poor slitting tolerance as the main cause of machine feed jams and misregistration during layering, with tight tolerance directly reducing scrap rates and protecting material investment.

Roll Hardness Profile

Roll hardness should be measured radially from core to outer diameter. A correctly wound roll is harder at the core and progressively softer toward the outside. Rolls with an inverted hardness profile—soft at core, hard at outside—will telescope or star under storage pressure. Specifying hardness profile testing, using instruments such as a J-ometer or Schmidt hammer, provides a measurable quality gate beyond visual inspection.

Slit Width Tolerance

Standard industry slit width tolerance is ±1/32 inch (approximately ±0.8 mm). High-precision converters can hold ±0.010 inch (±0.25 mm) or tighter, and for the most demanding applications, tolerances of ±0.1 mm are achievable on well-maintained equipment, as documented by Cloud Film. Verify your supplier's demonstrated capability against your equipment's feed system requirements before accepting a tolerance specification.

When to Request a Reroll vs. Reject the Roll

Not every edge defect is recoverable through a reroll operation. Procurement and quality teams need clear decision criteria to avoid consuming production time on material that will ultimately be rejected downstream.

A reroll is appropriate when:

• Edge lift is between 3 mm and 8 mm and no surface damage is present
• Telescoping is less than 5 mm and confined to the outer 10 percent of roll diameter
• Layer shift at the roll face is between 5 mm and 10 mm with no associated edge damage
• Roll hardness profile is inverted but the core and outer layer surfaces are intact

Roll rejection (no reroll recovery) is appropriate when:

• Edge fraying or tearing penetrates more than 2–3 mm into the usable film width
• Scratches in the machine direction are visible from 1 m on the single film layer surface
• Telescoping exceeds the allowable layer shift across more than 50 percent of the roll length
• Core damage prevents adequate grip for controlled unwinding

A written defect classification matrix allows receiving teams to make consistent decisions without supervisor escalation on borderline rolls.

Operational Impact: Efficiency Data for the Reroll Decision

The business case for specifying a reroll-capable supplier is measurable. Wintech documents that intelligent rewinding systems reduce product qualification rates from approximately 95 percent on operator-dependent equipment to greater than 99 percent under precise closed-loop control—an 80 percent reduction in scrap rate. Packaging Strategies cites recipe storage, automatic knife positioning, and core loading as key enablers for producing the same roll quality repeatedly across different operators—critical for facilities running multiple shifts.

For procurement managers, this translates directly to reduced incoming inspection burden, lower scrap cost on the applicator line, and more predictable changeover time. The cost of a supplier reroll pass is nearly always lower than the cost of a line stoppage caused by a roll that fails edge tracking at the laminator.

AluFilm's Approach to Reroll and Edge Quality

AluFilm manufactures aluminum protective films for B2B applications across extrusion, sheet metal, painted surface, and precision fabrication markets. Our slitting lines are configured for shear cutting with automatic knife positioning, delivering consistent slit width tolerances across production runs. Reroll capability is integrated into our quality workflow: rolls that exhibit edge wander or tension-induced structural defects during in-process inspection are doctored before release rather than shipped to customers to discover.

Our edge quality specification follows the criteria outlined in this article—edge lift ≤3 mm, layer shift ≤5 mm, and zero tolerance for visible surface scratches—backed by final roll inspection and documentation before dispatch.

If your operation requires tighter tolerances, narrower widths, or specific roll geometry for automated feeding systems, our technical team can review your requirements and confirm achievable specifications before order placement. Explore our full range of aluminum protective films or reach out directly to discuss your converting requirements.

Conclusion

A reroll operation is not a workaround for poor initial quality—it is a deliberate precision step in the converter's workflow that refreshes edge geometry, corrects tension-induced structural defects, and ensures that every roll delivered to a manufacturing line meets the edge quality specification required for consistent, high-throughput application. Understanding the mechanisms behind edge defects, the process parameters that govern reroll quality, and the decision criteria for reroll versus rejection gives quality engineers the technical foundation to specify film supply with confidence.

For specific edge quality requirements or to request technical data on AluFilm's slitting tolerances and reroll process, contact our team.
