Protective Films for ACM and ACP Panels: Keeping Composite Materials Safe
Why Protective Films Are Non-Negotiable for ACM and ACP Panels
Aluminum composite material (ACM) and aluminum composite panel (ACP) products sit at the intersection of structural engineering and architectural aesthetics. Their PVDF- or polyester-coated surfaces deliver decades of service life—4mm panels typically last 20–25 years in commercial applications—yet that surface is highly vulnerable during the period between manufacture and final installation. A single scratch, chemical smear, or moisture-induced stain can render a panel cosmetically unusable, triggering costly replacement on tight construction schedules.
This is precisely where precision-engineered protective films earn their value. Far from a passive wrapping material, the right protective film is a process-critical component: it must adhere securely enough to survive fabrication, transport, and site handling, yet release cleanly without adhesive residue when the project demands it. For procurement managers and quality engineers sourcing ACM and ACP panel protection, understanding film specifications is as important as understanding the panels themselves.
The ACM and ACP Market Context
The global aluminum composite panels market reached US$5.5 billion in 2023 and is projected to reach US$8.4 billion by 2031, growing at a CAGR of 5.5%. A separate analysis by Market.us projects the segment reaching US$13.2 billion by 2033 at a 6.4% CAGR. This growth is driven by commercial construction, smart city infrastructure, and increasing adoption of fire-resistant cladding systems worldwide.
As panel volumes scale, so does the cost exposure from surface damage. A conservative industry estimate places reject rates from handling damage at 2–5% of panel output when protective films are substandard or absent. On a large façade project consuming thousands of square meters of 4mm ACP, that waste translates directly to procurement budget overruns and program delays.
Asia-Pacific dominates production and consumption, with China, India, and Southeast Asia driving the largest share of demand. This matters for film specifications: panels shipped across long oceanic transit routes face humidity, salt air, and temperature cycling that demands higher-performance film adhesive systems than purely domestic supply chains.
Anatomy of an ACM/ACP Panel and Its Protective Film Layer
Understanding what the film is protecting helps engineers specify it correctly. A standard ACM or ACP panel comprises multiple bonded layers:
- Outer protective film — factory-applied PE or PVC film, 40–100 microns
- PVDF or polyester topcoat — weather-resistant decorative finish, 25–35 microns
- High-strength aluminum skin — 0.21–0.50mm for exterior grades
- Core material — PE, FR mineral-filled, or A2-rated non-combustible
- Anticorrosive primer and inner aluminum skin — mirror of the outer structure
The protective film interfaces directly with the PVDF or polyester topcoat. This coating, especially in PVDF grades, is extraordinarily resistant to UV and chemical attack in service—but during fabrication and construction, it is susceptible to mechanical abrasion, adhesive contamination, and staining from concrete, mortar, and cutting lubricants. The film's job is to act as a sacrificial barrier for the entire construction phase.
Key Film Specifications for ACM and ACP Applications
Not all surface protection films are interchangeable. ACM and ACP applications demand a specific performance envelope across several parameters:
Film Substrate
Polyethylene (PE) film dominates ACM/ACP applications due to its balance of conformability, printability, and clean-removal characteristics. Low-density PE (LDPE) in the 50–80 micron range handles most standard panel dimensions. For heavy-gauge panels (6mm) destined for industrial or high-rise use, thicker HDPE or multilayer PE films at 80–120 microns provide better puncture resistance during site handling.
Adhesive System
Acrylic pressure-sensitive adhesive (PSA) is the standard for PVDF-coated ACM/ACP. Acrylic systems offer:
- Good initial tack without cold-flow migration into surface pores
- UV stability during outdoor exposure windows up to 45 days
- Clean removal without plasticizer transfer to the PVDF coat
Rubber-based adhesives are generally avoided on fluorocarbon-coated panels because plasticizer migration can cause staining that is chemically bonded to the PVDF layer and impossible to remove without refinishing.
Peel Adhesion and Tack Values
For ACM/ACP protective applications, specification targets typically fall within these ranges:
| Parameter | Indoor / Short Transit | Outdoor / Long Transit | Test Method |
|---|---|---|---|
| Initial tack (loop) | 3–6 N/25mm | 5–9 N/25mm | ASTM D2979 |
| Peel adhesion (180°) | 0.3–0.8 N/25mm | 0.5–1.2 N/25mm | ASTM D3330 |
| Film thickness | 40–60 microns | 60–100 microns | ISO 4593 |
| Tensile strength | ≥12 MPa | ≥16 MPa | ASTM D882 |
| Elongation at break | ≥200% | ≥300% | ASTM D882 |
| UV resistance | 14 days outdoor | 45 days outdoor max | — |
The elongation specification is particularly important for ACM applications involving routing, V-grooving, or roll-forming. Films with insufficient elongation tear during these operations, leaving unprotected panel edges exposed to contamination at precisely the locations most prone to handling contact.

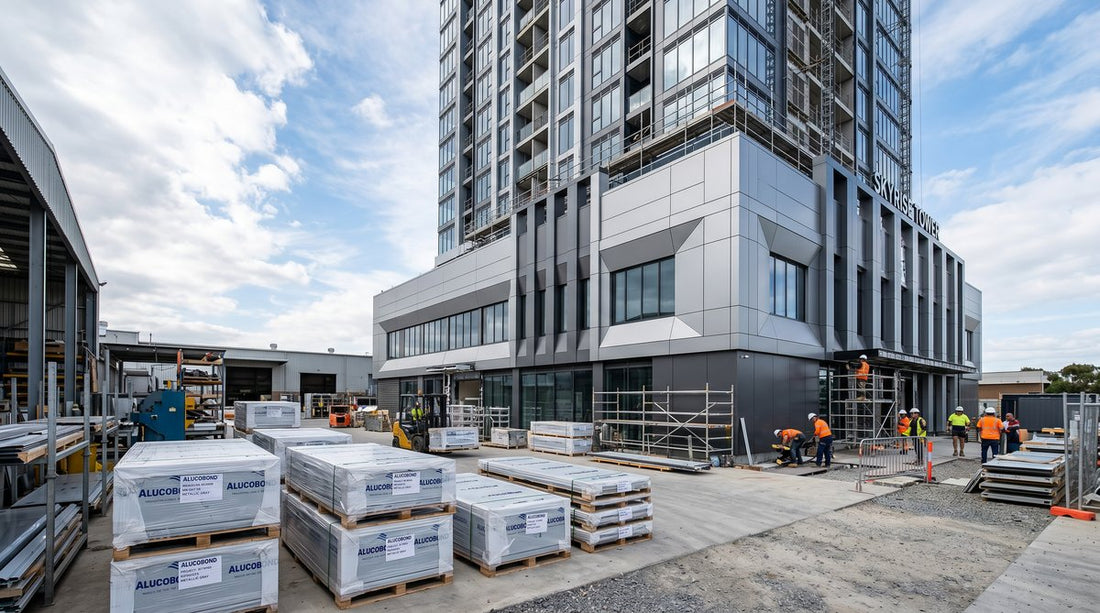

Outdoor Storage: Critical Rules for Protected Panels
Construction projects routinely require panels to be delivered weeks before installation begins. Proper outdoor storage is the first line of defense against protection failure:
Temperature and Environment Controls
Storage areas must maintain ambient temperatures below 70°C. In practice, panels stored under direct sun on unventilated pallets in tropical or desert climates can exceed this threshold rapidly, causing the adhesive to flow and bond permanently to the PVDF surface. Industry guidance specifies storing panels in dry, well-ventilated areas away from smoke, wind-driven sand, radiation sources, and chemical environments.
Horizontal vs. Vertical Storage
Panels should be stored flat (horizontal) whenever possible to prevent bowing. Clearview Cladding Concepts recommends a maximum outdoor storage duration of six months for protected panels. If vertical storage is unavoidable, panels should be stacked in groups of approximately 10 at a 10-degree lean angle with adequate base support.
Avoiding Panel-to-Panel Contact
Sliding one panel across another—even when both carry protective film—generates abrasion at any film edge or tear point. The four corners of each panel should be lifted simultaneously during movement. Dedicated foam corner protectors and interleave sheets are standard practice on high-value PVDF-finish panels.
Film Removal: Timing Is Everything
One of the most operationally critical—and most frequently mishandled—aspects of ACM/ACP protective film management is removal timing. Multiple industry sources confirm the 45-day rule: protective film must be removed within 45 days of panel installation. Beyond this window, UV degradation crosslinks the acrylic adhesive layer, dramatically increasing peel force and creating a high risk of adhesive residue remaining on the PVDF surface.
Consequences of Late Removal
- Adhesive ghosting: A visible outline of the film pattern remains on the panel surface, apparent under oblique lighting angles on the finished façade
- Mechanical tearing: Embrittled film substrate fractures during removal, leaving fragments that must be solvent-cleaned—potentially voiding the coating warranty
- Color differential: The protected zone under the film may display slightly different weathering than exposed panel edges and joints, creating visible demarcation lines
Removal Best Practice
Remove film during mild temperatures (15–30°C). Cold film becomes brittle and tears; hot film stretches and may smear adhesive. Begin at one corner and pull at a 180° angle back over the panel surface at consistent, moderate speed. For panels already exhibiting early adhesive hardening, a brief warming with a heat gun at 40–50°C can restore peel characteristics without damaging the PVDF coat.
Film Performance During Fabrication Operations
ACM and ACP panels undergo significant mechanical processing before reaching a building façade: CNC routing, V-grooving for folded returns, plasma or waterjet cutting, drilling, and riveting. Each operation places specific demands on the protective film:
CNC Routing and V-Grooving
V-groove routing removes material in a precise channel to enable folding. The film must remain intact across the groove walls and the fold radius (minimum bend radius: 30cm per industry standard). Films with 300%+ elongation conform to the groove geometry without lifting, maintaining protection through bending and clinching operations.
Cutting Operations
Circular saw and panel saw cutting generates localized heat at the cut edge. Films with thermally stable acrylic adhesives maintain bond integrity at cut edges, preventing ingress of aluminum swarf into the adhesive layer. Swarf contamination under the film creates abrasive particulates that migrate during subsequent handling and scratch the PVDF surface.
Selecting the Right Film Grade: A Decision Framework
Procurement and quality engineering teams can use the following framework to narrow film selection:
| Application Scenario | Recommended Film Type | Thickness | Adhesion Level |
|---|---|---|---|
| Factory-to-site domestic (under 2 weeks) | LDPE / acrylic PSA | 50–60 µm | Low-tack |
| Export / ocean freight transit | HDPE or multilayer PE / acrylic PSA | 80–100 µm | Medium-tack |
| CNC routing and V-groove fabrication | LDPE high-elongation / acrylic PSA | 60–80 µm | Low-to-medium tack |
| Outdoor storage >30 days pre-install | UV-stabilized PE / acrylic PSA | 75–100 µm | Medium-tack |
| High-gloss mirror or brushed finish | Soft LDPE / ultra-low tack acrylic | 50–70 µm | Ultra-low tack |
| Industrial / 6mm heavy gauge | HDPE / medium-tack acrylic | 100–120 µm | Medium-tack |
Quality Inspection Protocols for Incoming Film Rolls
Receiving inspection for protective film rolls should include at minimum:
- Roll geometry check: Core diameter, outer diameter, width tolerance (±2mm), and telescoping (max 3mm lateral shift)
- Thickness measurement: Micrometer check at 5 points across roll width, variation ≤±8%
- Initial tack test: Loop tack measurement on reference PVDF coupon, verify against specification
- Peel adhesion test: 180° peel after 24-hour dwell on PVDF panel at 23°C/50% RH
- Visual inspection: Check for gel inclusions, fish-eyes, or coating streaks on film surface that will transfer to panel
For high-volume production environments, establishing a retained sample protocol—storing 1-meter reference sections from each lot for 90 days—enables root-cause analysis if field complaints emerge after installation.
Cost of Protection vs. Cost of Failure
The economics of panel protection are straightforward. High-quality PE protective film for ACM/ACP applications typically costs US$0.02–0.08 per square meter of panel coverage, depending on film grade and order volume. A standard 1220×2440mm panel carries approximately 3 square meters of film surface.
By contrast, panel replacement due to surface damage carries costs that include the panel itself, re-cutting and fabrication labor, re-delivery logistics, and—on a façade project—potential scaffold re-mobilization. On complex architectural cladding projects, a single damaged premium PVDF panel can cost US$150–800 to replace in-situ. The film that could have prevented the damage costs less than US$0.25 per panel.
For procurement managers evaluating film suppliers, total cost of quality—not film unit price—is the correct optimization target.
Conclusion
Protective films for ACM and ACP panels are a precision specification decision, not a commodity purchase. Film substrate, adhesive chemistry, thickness, tack level, UV stability, and elongation properties must all be matched to the specific fabrication workflow, transit conditions, and installation timeline of each project. The 45-day removal rule is non-negotiable; outdoor storage protocols directly determine whether a premium PVDF cladding system arrives at installation ready to perform or requiring costly remediation.
As the global ACP market continues its trajectory toward US$8.4 billion by 2031, supply chain professionals who treat surface protection as a critical process input—rather than an afterthought—will consistently deliver better project outcomes and lower total material costs.
