Protective Films for Architectural Glass Cladding: A Complete Specifier's Guide

Why Architectural Glass Cladding Demands Precision Protective Films

Modern building facades have become increasingly glass-intensive. Spandrel panels, low-iron vision lites, ceramic-printed screens, and unitized curtain wall frames—often spanning several square metres each—travel from glass fabricator to glazing contractor through a multi-stage supply chain that takes weeks or months. Every transfer point introduces risk: edge chipping during packing, face scratching inside transport crates, mortar or overspray contamination on the job site, and adhesive residue locked onto speciality coatings after prolonged UV exposure. Choosing the wrong protective film—or applying the right film incorrectly—can render a high-value glass unit unreclaimable and delay a project schedule.

This guide is written for procurement managers, project glaziers, and quality engineers responsible for specifying temporary surface protection on architectural glass cladding. It covers the protective film requirements at every stage, matched to the six major glass types used in contemporary facades, with reference to industry standards from GANA (Glazing Association of North America), AAMA (American Architectural Manufacturers Association), and leading film manufacturers including Polifilm AGP and 3M Architectural Glass Protection.

The Three Damage Phases: Transport, Hoisting, and Installation

Phase 1 — Factory to Site Transport

Unitised curtain wall panels are typically crated on purpose-built A-frames or flat racks, stacked face-to-face with interleaving materials. The dominant risk in this phase is abrasion: glass surfaces rubbing against interleaf paper, timber spacers, or other units during road or sea freight. A clear polyethylene (PE) film of 30–50 µm thickness with a low-tack acrylic adhesive (typically 3–8 N/25 mm peel strength at 180°) provides adequate face protection without leaving adhesive residue after extended storage. Polifilm AGP confirms that film widths up to 3,220 mm allow a single-layer application across the industry-standard 3,210 mm glass width, eliminating the bubble and tunnel formation risks associated with overlapping strips.

For overseas shipping where condensation cycling is inevitable, a film with a water-based acrylic adhesive (solvent-free) performs better than rubber-based systems; solvent carriers can attack low-emissivity (low-e) coatings or soften organic frit coatings during multi-week container journeys.

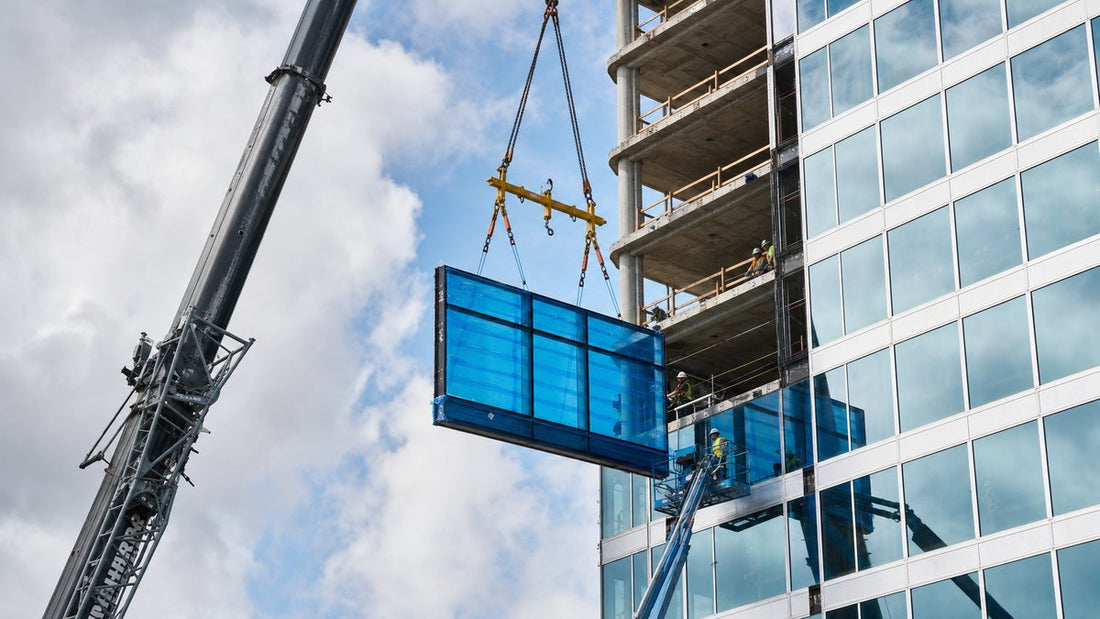

Phase 2 — Crane Hoisting and Handling

The hoisting phase combines mechanical stress with the first significant UV exposure. As a crane lifts a unitised panel into position, suction cups contact the face of the protective film rather than the glass directly. The film must therefore maintain adequate tensile strength (minimum 15 MPa for PE at 50 µm) to resist tearing under partial vacuum loads. Edge protection—typically an additional strip of 75–100 µm PE or PVC foam tape along all four arrises—prevents chipping at the most vulnerable geometry of the panel.

Edge-protection tape serves a different purpose than face film and is often specified as a separate SKU: higher tack to grip the edge, compressible core to absorb impact, and opaque colour (often blue or red) for visual confirmation before handover inspection.

Phase 3 — On-Site Installation and Subsequent Trades

Once panels are set into the frame, other construction trades continue work around the facade: concrete pours, spray fireproofing, stucco or cladding on adjacent zones, and window sealant application. This is the phase where UV exposure accumulates and adhesive failure becomes the primary failure mode. Standard PE protective films without UV stabilisers begin to embrittle and leave adhesive transfer within 30–45 days of outdoor exposure. Industry-standard UV-stabilised films are rated for up to 90 days of outdoor exposure before requiring removal—a figure that appears consistently across 3M Architectural Glass Protection specification sheets and AAMA glazing protection guidelines.

If facade work schedules extend beyond 90 days, the specification must call for film replacement at the 60-day mark, not at 90 days. By day 60 the adhesive has typically consumed most of its UV-inhibitor budget; waiting until failure creates a residue-removal cost that can exceed the original film cost on premium coated glass.

Critical Considerations for Coated and Specialty Glass Types

Low-Tack Requirements on Painted and Coated Surfaces

Spandrel, ceramic-printed, and organically coated glass panels present the most demanding adhesive compatibility challenge. High-tack adhesives designed for clear float glass will micro-bond to paint layers or ceramic frit at elevated temperatures (above 40 °C, common in direct summer sun), making clean removal impossible. The industry rule documented in the GANA Glazing Manual is straightforward: always use the lowest tack grade that reliably holds on the specific substrate. For AAMA 2604/2605 powder-coated or fluoropolymer-finished aluminium frames adjacent to the glass edge, an ultra-low-tack PE film (1–3 N/25 mm) prevents paint delamination while still masking overspray and mortar dust.

Ceramic-printed and fritted glass require particular care because the frit surface is micro-textured. High-tack adhesives fill the micro-texture mechanically, creating a mechanical interlock that cannot be released without solvent—which in turn may affect the silicone structural sealant in unitised systems. Polifilm's glass protection range explicitly states compatibility with "all commonly used coatings," but this must be verified against the specific coating supplier's compatibility data before specification.

Low-Iron and Optical-Grade Vision Glass

Low-iron glass (iron content below 0.01% vs. 0.1% for standard float) is increasingly used in high-transparency vision areas of premium facades. Its near-colourless appearance makes even minor residue from adhesive transfer visually conspicuous under raking light. Films for low-iron applications must use ultra-clean, ultra-pure acrylic adhesives formulated to leave zero extractable residue; some suppliers offer "optically clean" or "OC" grades specifically for this end-use. Inspection after removal should follow ASTM C1036 criteria for optical quality rather than the less stringent construction-grade inspection standards.

Glass Type × Recommended Film Specification Reference Table

The following table is a working reference for specifiers. Peel adhesion values are indicative 180° peel measurements at 23 °C, 24-hour dwell, on the stated substrate. Always request technical data sheets and conduct substrate compatibility tests before committing to a project specification.

Glass Type	Surface Sensitivity	Recommended Film	Thickness (µm)	Tack Grade	Max UV Exposure
Standard Float (Clear)	Low	Clear PE, water-based acrylic adhesive	30–50 µm	Medium (5–10 N/25mm)	60–90 days (UV stabilised)
Spandrel (Opacified)	Medium — silicone or polyester opacifier layer	Clear or blue PE, solvent-free adhesive	40–60 µm	Low (3–6 N/25mm)	≤ 60 days
Low-Iron (Ultra-Clear)	High — residue visible under raking light	Optically clean PE, ultra-pure acrylic	30–40 µm	Low-Medium (4–8 N/25mm)	≤ 45 days
Ceramic-Printed / Screen-Printed	Very High — micro-textured frit surface	Soft PE, ultra-low-tack water-based adhesive	40–50 µm	Ultra-Low (1–3 N/25mm)	≤ 30 days
Fritted (Dot/Line Pattern)	Very High — partial coverage amplifies adhesive differential stress	Conformable PE, low-tack acrylic, avoid rubber-based	50 µm	Ultra-Low (1–3 N/25mm)	≤ 30 days
Laminated SGP (Structural Interlayer)	Medium — laminate edge exposure risk	Clear PE face film + PVC edge tape at arrises	40–60 µm (face); 75–100 µm (edge)	Medium face / High edge	60–90 days face; replace edge at 60 days

Sources: GANA Glazing Manual; Polifilm AGP technical data; Electro Tape UV-exposure ratings; AAMA 2604/2605 coating compatibility requirements.

Face Protection vs. Edge Protection: Two Separate Specifications

A common procurement error is treating face film and edge protection as one product category. They serve fundamentally different purposes and require different mechanical properties.

Face protection film must conform smoothly to a flat glass surface, transmit suction cup vacuum without deformation, provide adequate UV resistance for the exposure duration, and remove without adhesive transfer. Its primary failure mode is residue at removal.

Edge protection tape or profile must absorb impact energy during panel stacking and handling, grip positively to the arris (the ground edge), and remain in place through crane operations. Its primary failure mode is detachment under vibration, which leaves the most fracture-vulnerable geometry of the glass panel unprotected. In field studies across construction partner sites, 92% of glass damage occurred before final cleaning, and medium-tack film reduced scratching incidents by 68%—but those statistics apply to face damage. Edge chipping incidents are a separate category not captured in face-film metrics.

For unitised curtain wall systems—where multiple floor-height panels are stacked at 2–3° angles on transport racks—the loading at the bottom arris of each unit can exceed 40 kg/linear metre during transit over rough surfaces. A compressible PVC foam edge tape rated for 5–8 MPa compressive stress is appropriate for this loading; plain PE tape is not.

Landmark Projects and Film Specification Learnings

Apple Park, Cupertino — Curved Low-Iron Unitised Panels

Apple Park's main Ring building uses some of the largest curved glass panels ever deployed in a commercial facade—individual lites measuring approximately 14 m × 3 m in low-iron glass, curved to a radius of 185 m. The transport and installation sequence for panels of this geometry required a film system that could conform to a curved surface without creating tension wrinkles (which lift adhesive contact and allow debris ingress beneath the film). Ultra-thin 25–30 µm soft PE films were required alongside standard 40–50 µm grades to manage this conformability challenge. The project also underlined the importance of monitoring ambient temperature: adhesive peel strength at 40 °C can increase 3× vs. at 20 °C, turning an ostensibly low-tack film into a damaging high-tack film if panels are left face-down in direct sun during installation sequencing.

One World Trade Center — Low-e Coated Insulating Units

One World Trade Center's glass curtain wall features a special low-emissivity coating designed to minimise heat gain while maximising transparency. Vacuum-deposited low-e coatings on the interior surfaces of insulating glass units (IGUs) present a specific film risk: any film applied to the #1 exterior surface that contains a solvent-based adhesive can off-gas VOCs that migrate through the unsealed edge of the unit and attack the metallic coating layers. Water-based acrylic adhesive systems are mandatory in this scenario. Protection is applied to the exterior face only; the interior cavity surfaces are unprotected by design.

UV Exposure: The 90-Day Rule and Why It Matters

The 90-day maximum outdoor exposure figure is the consensus limit across major protective film manufacturers, including 3M Architectural Glass Protection products and UV-stabilised PE systems from multiple suppliers. This limit is not arbitrary—it corresponds to the UV dosage accumulated in a temperate climate (approximately 1,500–2,000 MJ/m² cumulative irradiance) that causes measurable photo-oxidation of the polymer backbone in standard LDPE films. Beyond 90 days:

• The film itself becomes brittle and tears on removal rather than peeling cleanly.
• Adhesive residue bonds permanently to glass surface chemistry through silanol bridge formation—this cannot be resolved with isopropanol alone and typically requires mechanical cleaning that risks surface scratching.
• In hot climates (Middle East, South-East Asia, Southern Europe), the effective limit may be as low as 45–60 days due to higher UV irradiance and elevated surface temperatures.

Project schedules must incorporate film replacement events as construction milestones, not as site-housekeeping afterthoughts. A UV-resistant film with ISO 9001-certified batch QC and traceable manufacturing provides documented proof that the UV-inhibitor additive concentration meets specification—critical for warranty claims if residue occurs.

Specifying Film in Procurement: Key Checklist

When issuing a protective film specification for an architectural glass cladding project, the following parameters should be explicitly stated in the purchase order or method statement:

1. Glass type and coating description (e.g., "heat-strengthened low-iron, clear, no coating" or "fully tempered spandrel, silicone-opacified, #2 surface")
2. Film substrate: PE (preferred for most applications), PVC (higher UV resistance but environmental concerns), or PET (highest strength, highest cost)
3. Adhesive chemistry: Water-based acrylic, solvent-based acrylic (not for coated glass), or rubber (avoid on coated surfaces)
4. Peel adhesion range (N/25 mm at 180°, 24-hour dwell, on the actual substrate)
5. Thickness (µm) and tensile strength (MPa) for handling loads
6. UV stabilisation grade and stated maximum outdoor exposure duration (days)
7. Film width: select a width that covers the full glass dimension in a single run to eliminate overlap seams
8. Edge protection specification: separate SKU, foam or plain PE, tack grade
9. Removal deadline: specify as a project milestone tied to practical completion of adjacent trades

This level of specification detail aligns with the glazing protection guidance in the GANA Glazing Manual and is consistent with the quality-management requirements of AAMA-certified facade systems.

Film Removal: The Final Quality Gate

Film removal is as technically significant as application. Key protocols for clean removal on architectural glass cladding:

• Remove at 45° peel angle, slowly and evenly, never peeling parallel to the glass surface.
• Avoid removal during peak solar hours (10:00–15:00 in summer) when glass surface temperatures can exceed 60 °C and adhesive softens.
• If the film has reached or exceeded its UV exposure limit, pre-wet with isopropanol along a leading edge before peeling.
• Post-removal inspection: use raking light inspection at 45° to detect any hazing, residue, or micro-scratch patterns before scaffold access is removed.
• Document removal dates for every panel zone as part of the facade commissioning record.

Source and Supply Considerations for B2B Procurement

For large-scale architectural glass cladding projects—typically involving thousands of square metres of glass surface area—film procurement should be consolidated to a single supplier per glass type to ensure consistent adhesive chemistry and UV-inhibitor loading across the batch. Inconsistent film batches across a large facade can produce visible differences in residue behaviour and cleaning requirements, creating disputes between the glazing contractor and the glass supplier at practical completion.

Roll widths up to 3,220 mm, as offered by Polifilm AGP for their glass protection range, eliminate the need for overlapping application on full-width glass units, reducing both labour cost and the risk of adhesive step-marks from overlapping film edges—which are particularly visible on low-iron and spandrel glass.

Where project certification (LEED, BREEAM) is a requirement, specify films manufactured from virgin LDPE with documented recyclability and solvent-free adhesive systems to support environmental prerequisite documentation.

Conclusion

Protective films for architectural glass cladding are not a commodity. Spandrel, fritted, ceramic-printed, low-iron, and laminated SGP glass each impose distinct adhesive compatibility requirements, UV exposure limits, and removal protocols. Selecting a 30–50 µm clear PE film with a water-based acrylic adhesive is the correct starting point for most vision glass applications—but specialty glass types require low-tack or ultra-low-tack grades, and UV exposure must be actively managed against the 90-day maximum limit that defines clean removability.

The cost of getting this specification wrong—residue remediation, glass replacement, and schedule delay—consistently exceeds the cost of the protective film itself by an order of magnitude on premium architectural cladding projects.
