Protective Films for Furniture and Cabinetry Manufacturing
Why Furniture and Cabinetry Manufacturers Cannot Afford to Skip Surface Protection Film
A finished kitchen cabinet panel travels through at least seven handling stages before it reaches the installation site: press line, edge-banding, CNC routing, sanding, finishing, quality inspection, palletizing, and delivery. Every stage introduces the potential for scratches, scuffs, adhesive contamination, or moisture marks on a surface that is, by that point, the primary selling feature of the product. Protective film applied immediately after the finishing process creates a continuous barrier that costs a fraction of the rework, rejection, or warranty-claim expenses it prevents.
This guide examines how to select the right protective film for the most common furniture and cabinetry substrates—high-gloss acrylic, UV-lacquered MDF, wood veneer, high-pressure laminate (HPL), and stainless steel trim—and maps each substrate's requirements to adhesion level, film thickness, and removal window. It also references the KCMA A161.1 quality certification standard and ANSI/AWI 1232 manufactured wood casework standard to anchor film selection in the performance expectations your customers already use when specifying cabinetry.
The Five Damage Vectors in a Furniture Factory
Understanding where damage occurs drives smarter film selection. In a typical cabinet production environment, five risk categories dominate:
- Mechanical abrasion — Panel-to-panel contact on conveyors, stacking in bundles, and manual handling with gloves or tools leaves micro-scratches that are invisible until the customer applies backlighting.
- Adhesive and chemical contamination — Edge-banding adhesive, lubricants on conveyor rollers, and silicone overspray can bond to unprotected finishes, requiring solvent cleaning that may itself damage the surface.
- Moisture and humidity cycling — MDF panels are hygroscopic. High-gloss surfaces on MDF swell differentially at the edges, causing micro-delamination if the facing film also transmits moisture.
- UV yellowing during outdoor storage — Panels staged in loading bays or in transit containers near open doors can receive several hours of UV exposure per day. Without a UV-stabilized film, white and light-colored lacquer finishes yellow visibly within a few weeks.
- Impact during packing and transit — Palletized cabinets shift in transit even when correctly strapped. Corner and edge impacts are the leading cause of finish damage claims.
Substrate-Specific Film Requirements
Not all protective films are interchangeable. The finish chemistry, surface energy, and texture of each substrate dictate adhesion level, film stiffness, and removal timing. Applying a medium-tack film intended for brushed stainless steel to a high-gloss acrylic panel, for example, will leave adhesive residue that requires costly cleaning—or will permanently dull the surface.
High-Gloss Acrylic and Piano-Lacquer Panels
High-gloss acrylic panels and piano-lacquer cabinet doors have smooth, high-surface-energy faces that respond poorly to even moderate adhesive tack. The recommended film is a co-extruded polyethylene (Co-Ex PE) with an ultra-low-tack acrylic adhesive in the range of 25–50 g/25 mm peel force. Thickness should be 50–75 µm to provide adequate rigidity for handling without adding weight that promotes edge lifting during temperature cycling.
Crucially, the film must be removed within the manufacturer's stated window—typically 3 to 6 months—before UV photodegradation cross-links the adhesive layer and makes clean removal impossible. Coefilm's technical guidance on wood and decorative laminate films notes that for high-gloss surfaces, low-adhesion films are specifically recommended to prevent any marking upon removal.
UV-Lacquered and Catalyzed Conversion Varnish (CV) MDF
UV-cured and catalyzed conversion varnish finishes are the professional standard for factory-finished cabinetry meeting KCMA A161.1 finish test requirements, which include 24-hour chemical exposure to vinegar, citrus, coffee, and 100-proof alcohol. These finishes are chemically inert and hard once cured, but they remain sensitive to scratching from particulates trapped under a film. A 60–80 µm Co-Ex PE film with low tack (40–80 g/25 mm) and a particulate-free adhesive layer is appropriate. The film backing color should be blue or white (never black) to allow visual inspection of the panel surface through or alongside the film during quality control.
Wood Veneer Surfaces
Real wood veneer—typically 0.5–0.6 mm slices bonded to MDF or particleboard core—presents unique challenges. The surface is porous and can absorb moisture from a film's adhesive, causing grain raising or localized darkening. The film must use a water-free acrylic adhesive rather than a rubber-based adhesive. Thickness in the range of 50–60 µm is preferred; heavier films trap heat and can promote adhesive migration into open grain pores. The AWI Premium Grade standard (ANSI/AWI 0642-2024) covers veneer and panel matching tolerances for architectural woodwork—any surface defect introduced by improper film removal can render a panel non-conformant to Premium Grade specification.
High-Pressure Laminate (HPL) and Melamine Panels
HPL and melamine-faced panels are the workhorses of kitchen, office, and commercial cabinetry. Their surfaces are moderately rough at a micro level, which means they can accept a slightly higher adhesion film without residue risk. A standard PE or Co-Ex PE film at 60–100 µm with medium tack (80–150 g/25 mm) provides reliable adhesion even under the vibration and humidity cycles of container shipping. Surface Armor's laminate-specific guidance categorizes HPL and LPL separately and matches adhesion values to each—a practice worth mirroring when specifying film for production lines running both material types.
Stainless Steel Trim and Drawer Fronts
Stainless steel—particularly #4 brushed and #7 polished finishes—is increasingly specified for premium cabinetry drawer fronts, kickplates, and integrated appliance panels. These surfaces require precision adhesion matching. A 75–100 µm PE film with medium-tack adhesive (80–120 g/25 mm) is recommended for #4 brushed stainless; #7 mirror polish requires a step down to low tack (40–60 g/25 mm) to prevent adhesive transfer into the mirror finish. Polifilm's stainless steel protection film range distinguishes between satin and polished grades for exactly this reason.
Substrate-to-Film Specification Table
| Substrate / Finish | Recommended Film Type | Thickness (µm) | Adhesion Level | Peel Force (g/25 mm) | Max Removal Window | Adhesive Residue Risk |
|---|---|---|---|---|---|---|
| High-gloss acrylic / piano lacquer | Co-Ex PE, ultra-low tack | 50–75 | Ultra-low | 25–50 | 3–6 months | Low (if in-window) |
| UV-lacquered MDF (matte or satin) | Co-Ex PE, low tack | 60–80 | Low | 40–80 | 6–9 months | Very low |
| CV-finished solid wood / cabinet door | Co-Ex PE, low tack | 60–80 | Low | 50–80 | 6 months | Very low |
| Wood veneer (open-grain) | PE, water-free acrylic adhesive | 50–60 | Ultra-low to low | 25–60 | 3 months | Medium (grain absorption) |
| High-pressure laminate (HPL/LPL) | Co-Ex PE, medium tack | 60–100 | Medium | 80–150 | 9–12 months | Low |
| Stainless steel #4 brushed | PE, medium tack | 75–100 | Medium | 80–120 | 6 months | Low |
| Stainless steel #7 mirror polish | Co-Ex PE, low tack | 50–75 | Low | 40–60 | 3–4 months | Low (critical: do not exceed) |
The Adhesive Residue Problem: Causes, Consequences, and Prevention
Adhesive residue is the most-cited quality complaint in protective film applications. It occurs under three main conditions: the film is left on beyond its stated removal window; the surface is exposed to elevated temperature (above 60°C) that softens the adhesive and promotes transfer; or the film is peeled at an acute angle (less than 30°) rather than the recommended 90°–135° back-peel angle.
In a cabinetry context, the most common scenario is panels stored in a warehouse or container during peak shipping season, where ambient temperatures in non-climate-controlled environments can reach 55–70°C. A film specified with a six-month removal window may effectively have a three-month window under those thermal conditions.
Preventive practices include:
- Specifying films with a heat-resistant acrylic adhesive rated to at least 80°C for panels destined for container export.
- Printing the removal deadline on the film backing at regular intervals so warehouse and installation crews see it without consulting a spec sheet.
- Conducting a peel adhesion test per ASTM D3330 on a sample panel from each production batch before full application, to confirm film-to-substrate compatibility.
- Training receiving teams to remove film immediately upon installation, rather than waiting until after all cabinets are hung.
The Coast Label industry guide on protective films identifies ease of residue-free removal as a primary criterion for protective film selection—a position that should be written into purchase specifications rather than assumed from generic product descriptions.
Factory-to-Showroom Protection Scenarios
Press-Line and Post-Finishing Application

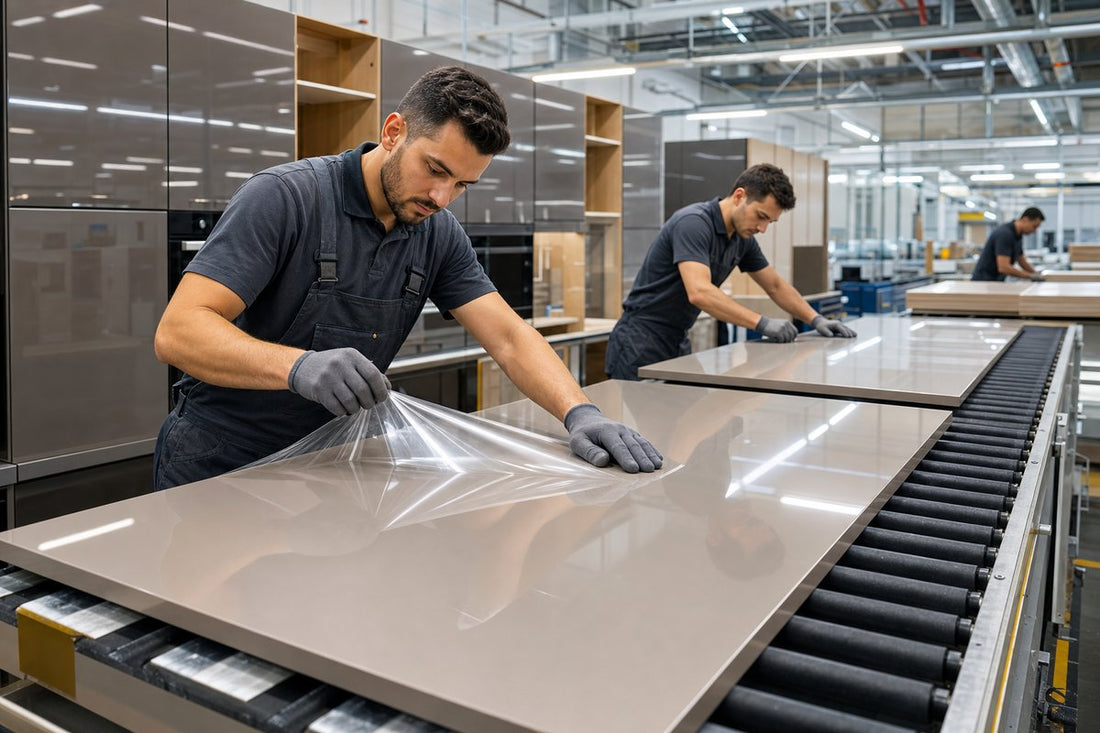

The optimal application point is immediately after the finishing cure is complete and the panel surface has cooled to below 40°C. At this stage, the surface is at its cleanest, and the film can be laminated inline using a roller applicator at speeds of 10–30 m/min. Any delay allows particulates to settle on the finish, which become trapped under the film and create micro-abrasion points during transit.
CNC Routing and Edge-Banding Protection
During CNC routing, the film provides a critical second function: it acts as a slip layer between the panel surface and vacuum hold-down fixtures, preventing suction-cup marks on high-gloss panels. The film must have adequate stiffness (typically achieved through 60+ µm thickness) to resist tearing under the vacuum pressure without de-laminating from the panel. After edge-banding, the film edge should overlap the banded edge by at least 5 mm to prevent glue ingress under the film at the perimeter.
Quality Inspection Under Film
Transparent or translucent blue films allow visual inspection of the substrate surface without removal, which is a significant efficiency gain on production lines where 100% visual inspection is required. Films with haze values below 5% (measured per ASTM D1003) provide sufficient optical clarity for detecting color variation, grain defects, and finish holidays without compromising the protective function.
Packaging, Palletizing, and Transit
KCMA A161.1 structural tests simulate 25,000 door and drawer cycles and 600 lb wall-cabinet load tests. The film does not participate in structural performance, but it does protect the cosmetic surfaces that inspectors and end-users evaluate on delivery. Panels should be palletized face-to-face (film surface to film surface) with interleaving foam sheets at the corners and edges to absorb impact energy. The protective film in this scenario is the last line of defense against transit marking before the cabinet is installed and the film is removed.
Film Width, Roll Length, and Application Equipment Considerations
Furniture and cabinetry manufacturers work with panels ranging from small drawer fronts (200 mm wide) to full-height wardrobe panels (1220 mm or wider). Standard PE protective film roll widths are available from 300 mm to 1500 mm, with custom slit widths available for dedicated production lines. Roll lengths of 200 m to 500 m are typical for inline applicators; shorter rolls (50–100 m) are used for manual application on smaller runs.
For production environments running multiple substrate types, a practical approach is to maintain two film specifications on separate applicator stations: an ultra-low-tack film for all gloss finishes, and a medium-tack film for HPL, laminate, and stainless. Color-coding the film backings (e.g., blue for low-tack, white for medium-tack) eliminates cross-application errors and simplifies receiving-end identification.
Standard PE film thicknesses from PE film manufacturers range from 30 µm to 200 µm, with the 50–100 µm range covering the majority of furniture and cabinetry applications. Films below 50 µm are prone to tearing during peel on rough or textured surfaces; films above 100 µm add unnecessary cost and weight without proportional protection benefit for panel applications.
Regulatory and Standards Alignment
Furniture manufacturers supplying the North American market increasingly face specification requirements tied to KCMA A161.1 and AWI Premium Grade. Neither standard directly specifies the protective film used during manufacturing, but both require that the finished cabinet surface delivered to the project site be free of defects. This creates an implicit requirement: the protective film must be capable of protecting the finish to the standard of perfection these certifications demand, without itself introducing adhesive contamination or mechanical marks.
For export markets, RoHS and REACH compliance of the film adhesive system may be required, particularly for residential cabinetry with prolonged skin contact areas (e.g., drawer pull surrounds). Specifying a film with documented REACH SVHC screening and a compliant Safety Data Sheet is advisable for any production destined for the EU market.
The Association of International Metallizers, Coaters and Laminators (AIMCAL) publishes technical resources on pressure-sensitive adhesive film performance testing that serve as a useful cross-reference when evaluating film supplier data sheets against application requirements.
Total Cost of Protection vs. Total Cost of Rejection
A common objection to specifying higher-quality protective film is cost per square meter. A premium Co-Ex PE ultra-low-tack film may cost 15–30% more than a commodity PE film. However, the relevant comparison is not film cost versus film cost—it is film cost versus rework cost.
A single rejected high-gloss acrylic kitchen front (material, finish labor, and reprocessing) typically costs 8–15× the cost of the protective film that would have prevented the rejection. For a manufacturer producing 500 cabinet fronts per day, reducing the rejection rate by even 0.5% through better film specification recovers the premium cost many times over within a single month.
The same logic applies to adhesive residue remediation. Solvent cleaning of adhesive residue from a piano-lacquer finish is a skilled manual process that can take 10–20 minutes per panel. At any realistic labor rate, the cost of remediation on even five panels per week exceeds the annual cost premium of a better film specification.
Explore the full range of industrial surface protection films for furniture and cabinetry manufacturing to find the right specification for your production environment.
Conclusion: Film Selection Is a Quality Engineering Decision
Protective film for furniture and cabinetry manufacturing is not a commodity consumable—it is a precision component of the quality assurance system. The substrate, finish chemistry, production process, transit conditions, and removal timeline all determine the correct specification. Selecting on price alone, without matching adhesion level, thickness, and adhesive chemistry to the substrate, reliably produces exactly the surface defects the film was intended to prevent.
For manufacturers supplying KCMA-certified or AWI Premium Grade cabinetry, the film specification should be as carefully documented as the finish system itself. A clear film specification, applied consistently at the right point in the production process, is one of the highest-return quality investments available in a furniture factory.
