Quality Control in Protective Film Manufacturing

When a procurement manager specifies a protective film for a metal panel, an electronics assembly line, or a painted automotive surface, they are not just selecting a roll of polyethylene. They are selecting a performance guarantee. That guarantee is only as reliable as the quality control system behind it.

Protective film manufacturing sits at the intersection of materials science, precision engineering, and industrial process control. Defects that are invisible to the naked eye — a 5% thickness variation, adhesive that cures unevenly, a misaligned liner — can translate into surface damage, production downtime, or rejected shipments downstream. For manufacturing companies and quality engineers sourcing protective films, understanding the testing landscape is essential to making confident procurement decisions.

This article covers the primary testing methods used across the industry, the standards that govern them, and how a disciplined quality process separates reliable suppliers from the rest.

Why Film Quality Control Matters in B2B Manufacturing

Protective films serve one purpose: to shield finished surfaces from scratches, contamination, and handling damage between production and end use. That purpose depends entirely on two properties performing in concert — controlled adhesion and structural integrity. Too little adhesion and the film lifts during transport; too much and it leaves residue or damages sensitive coatings on removal. Structural failures — tears, pinholes, gauge variation — expose the substrate at exactly the wrong moment.

The financial consequences of film failure in a manufacturing environment are asymmetric. A roll of protective film is a low-cost input. A batch of scratched aluminum panels, rejected electronic assemblies, or reworked painted components is not. This asymmetry makes quality verification a non-negotiable step in supplier qualification, not an optional procurement preference.

For quality engineers, this means evaluating suppliers not just on price and lead time, but on their testing protocols, standards compliance, and traceability records.

Core Testing Methods in Protective Film Manufacturing

1. Adhesion Peel Testing (ASTM D3330)

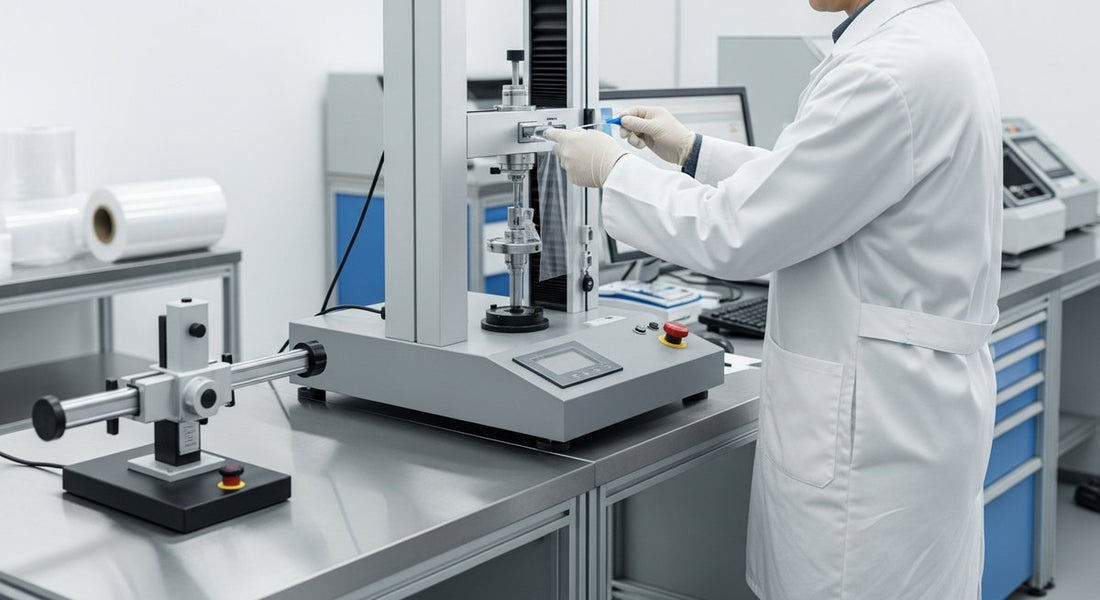

Peel adhesion testing is the most critical performance test for pressure-sensitive protective films. ASTM D3330 is the definitive standard, defining six distinct test methods (A through F) that cover different tape constructions and peeling conditions. Method A — 180° peel of single-coated tape to a polished stainless steel panel — is the most widely used benchmark for protective films.

Key controlled parameters under ASTM D3330 include:

• Specimen width: 25 mm
• Conditioning: 24 hours at 23°C and 50% relative humidity
• Peel angle: 180° (Method A) or 90° (Method F)
• Peel rate: 300 mm/min
• Roller application: standardized 2 kg roller

Results are reported in N/25 mm. For protective films used on painted or powder-coated surfaces, typical acceptance ranges fall between 0.3 and 1.5 N/25 mm — enough to hold securely in transit, but low enough to peel cleanly without residue. ZwickRoell notes that the standard also covers adhesive failure modes: a clean adhesive failure (no residue) is preferred, while cohesive failures or backing failures indicate formulation or manufacturing issues requiring investigation.

2. Tensile Strength and Elongation (ASTM D882)

Structural integrity under mechanical stress is measured through tensile testing. ASTM D882 is the standard method for thin plastic films under 1.0 mm in thickness, measuring tensile strength, elongation at break, yield strength, and modulus of elasticity.

Specimens 25 mm wide are elongated at a constant rate until failure. The test generates data in both machine direction (MD) and transverse direction (TD), which matters because many films exhibit anisotropic properties — they perform differently depending on orientation. Industry practice requires testing both orientations to fully characterize a film's mechanical behavior. Premium protective films typically exceed 50 MPa tensile strength in both MD and TD directions.

3. Thickness Uniformity Measurement (ASTM D8136)

Uniform thickness across the full roll width is fundamental to consistent performance. Variations create weak points that compromise protection and can cause uneven adhesion across the substrate. Capacitance thickness gauges under ASTM D8136 provide precise, non-contact measurement that does not damage delicate films.

Modern manufacturing lines use beta gauge systems for inline thickness monitoring, delivering real-time feedback that enables automatic process corrections. Leading manufacturers maintain thickness variation below 2% through automated control systems — significantly tighter than the 5% threshold that begins to affect mechanical properties and barrier performance.

4. Impact Resistance (ASTM D1709)

Dart drop impact testing measures a film's resistance to sudden puncture forces — the kind encountered in automated handling, stacking, or transit over rough surfaces. ASTM D2103 references Method A of ASTM D1709 for impact strengths up to 2,000 g, with Method B applied for higher-impact applications. This test is particularly relevant for protective films used in metal fabrication and construction, where substrate handling is less controlled than in electronics assembly.

5. Tear Resistance (ASTM D1004)

Tear resistance determines how well a film resists propagation of an existing tear during application and removal. ASTM D1004 uses a notched specimen subjected to a controlled force, measuring the energy required to propagate a tear. High tear resistance is particularly critical for films applied over complex geometries or large-format panels where handling stress concentrates at edges and corners.

6. Coefficient of Friction (ASTM D1894)

For films used in automated application systems or stacked sheet goods, surface friction characteristics affect how the film feeds through equipment and how stacks of film-protected panels slide against each other. ASTM D1894 measures both static and kinetic coefficients of friction, providing data that informs both manufacturing process design and end-user handling recommendations.

Key Testing Methods at a Glance

Industry Standards and Quality Management Frameworks

ISO 9001:2015 — The Foundation of Systematic Quality

Individual test results tell you whether a specific lot passed or failed. A quality management system (QMS) tells you whether your supplier has the organizational infrastructure to produce consistent results across every lot, every production run, every year.

ISO 9001:2015 is the globally recognized framework for quality management systems. For film manufacturers, it governs film gauge tolerance, seal integrity, and optical properties across extrusion and converting operations. Key requirements include documented quality policies, a process approach to production control, risk management, and mechanisms for continuous improvement.

ISO 9001:2015 certification means a manufacturer has been audited by an independent third party and found to have functioning systems for preventing defects — not just detecting them. For procurement managers sourcing protective films at scale, it is a baseline qualification criterion, not a differentiator.

ASTM D2103 — Polyethylene Film and Sheeting Specification

ASTM D2103 provides the overarching specification framework for PE film and sheeting, covering density, impact strength, coefficient of friction, haze, thickness, and yield. It sets the classification structure within which protective PE films are characterized and compared across suppliers.

ASTM D3981 — Medium-Density Polyethylene Film Properties

ASTM D3981 specifically addresses medium-density polyethylene films for general use and packaging, defining dimensional tolerances, intrinsic quality requirements (density, workmanship), and the test methods required to demonstrate fitness for purpose.

EN ISO 14632 — Extruded PE-HD Sheet Requirements

EN ISO 14632:2021 specifies requirements and test methods for solid flat extruded polyethylene homopolymer sheets. For manufacturers supplying into European markets, this standard and related EN frameworks are directly relevant to product specification and CE marking requirements.

What Rigorous QC Looks Like in Practice

Standards define the minimum bar. The difference between an adequate supplier and an exceptional one lies in how those standards are implemented across the full production cycle.

Incoming Raw Material Verification

Quality starts before extrusion. Resin specifications — melt flow index, density, additive packages — directly affect the adhesive chemistry and mechanical properties of the finished film. Suppliers who verify incoming raw materials against specifications prevent variability from entering the process at its source.

Inline Process Monitoring

Modern extrusion lines integrate real-time thickness measurement using beta gauge or laser micrometry systems. When thickness drifts outside acceptable tolerances, automated die controls adjust to bring the process back within specification — without stopping production or waiting for downstream inspection results. Research indicates that 83% of gauge variations originate from uneven melt distribution at the die head, making inline monitoring at this stage particularly impactful.

In-Process and Finished Goods Testing

Statistical sampling at defined intervals — not just end-of-run inspection — catches process drift before it becomes a non-conforming lot. Testing adhesion, tensile properties, and thickness from multiple positions across a roll width gives a complete picture of within-roll uniformity, not just a pass/fail at the core or edge.

Lot Traceability and Documentation

For quality engineers conducting supplier audits, traceability is the evidence that a QMS is functioning as designed. Every roll should be traceable back to the production batch, the resin lot, and the test results from that run. This documentation chain is what enables root cause analysis when a field issue arises — and what allows a procurement team to act quickly when it does.

Shelf Life and Storage Controls

Protective film adhesion changes over time, particularly at elevated temperatures or under UV exposure. A disciplined QMS includes specified storage conditions, maximum shelf life, and FIFO (first-in, first-out) inventory management to ensure that film shipped to customers performs as tested.

The AluFilm Quality Approach

At AluFilm, quality control is embedded in every stage of the manufacturing process — not applied as a final inspection gate. Our films are produced to defined specifications that align with ASTM and ISO testing frameworks, with in-process monitoring and finished goods testing on every production run.

Our product range is designed specifically for industrial and B2B applications: aluminum panels, stainless steel sheets, powder-coated surfaces, painted profiles, and precision-machined components. Each application has different adhesion, elongation, and UV resistance requirements, and our specifications reflect those differences.

When you source protective film from AluFilm, you receive documentation that supports your own quality management requirements — including lot traceability, test data, and specifications against which your incoming inspection team can verify performance.

For procurement managers and quality engineers who need to move quickly but cannot afford film failures in production, this level of process discipline is what makes the difference.

Browse our full range of protective films — specified, tested, and ready for industrial applications: View All AluFilm Products.

Have a specific substrate, application environment, or adhesion requirement? Contact our technical team to discuss specifications and request samples.

Frequently Asked Questions

What is the most important quality test for protective film?

Peel adhesion testing per ASTM D3330 is typically the most critical, as it directly measures the property that determines whether a film will hold in place during use and release cleanly on removal. However, tensile strength and thickness uniformity tests are equally important for films used in high-stress handling environments.

How do I evaluate a protective film supplier's quality system?

Request ISO 9001:2015 certification documentation, ask to see sample test reports for recent production lots, and verify that lot traceability records are maintained. A supplier who can provide test data from multiple points across the roll width — not just a single composite sample — demonstrates a more rigorous quality process.

What thickness variation is acceptable in protective film?

Industry practice considers ±5% thickness variation acceptable for most applications. Leading manufacturers maintain variation below 2% using automated inline monitoring systems. For applications requiring consistent optical properties or precise mechanical performance, tighter tolerances should be specified explicitly.

Does protective film adhesion change over time?

Yes. Pressure-sensitive adhesive on PE film can build adhesion (become harder to remove) over time, especially under elevated temperature or UV exposure. Specifying maximum shelf life, storage conditions, and dwell time limits at application are important quality parameters that should be addressed in product specification documents.
