UV-Resistant Protective Films: When Your Products Face the Sun
When construction materials, aluminum profiles, window systems, or composite panels spend weeks — or months — sitting in an outdoor yard before installation, they face a constant, invisible threat: ultraviolet radiation. Standard protective films are not designed for prolonged sun exposure. Without the right UV stabilization chemistry, they degrade fast: turning brittle, losing adhesion, and leaving adhesive residue that is difficult to remove. The result is damaged product surfaces, costly rework, and client complaints.
A UV-resistant protective film is engineered to handle exactly this scenario. This article explains how UV degradation affects protective films, how UV stabilizers extend outdoor service life, what durability ratings mean in practice, and which construction and manufacturing applications benefit most from weatherable protection films.
Why Standard Protective Films Fail Outdoors
Most temporary surface protection films are manufactured from polyethylene (PE) — a cost-effective, flexible polymer well suited to protecting surfaces during transport and handling. However, standard LDPE and LLDPE films contain no UV protection chemistry. When exposed to sunlight, UV radiation (wavelengths from 290–400 nm) attacks the polymer chain through a process called photooxidative degradation.
The mechanism is straightforward: UV photons break the covalent bonds in the polymer backbone, generating highly reactive free radicals. These radicals trigger chain reactions — cross-linking or chain scission — that fundamentally alter the film's physical properties. According to GreyB research on polyethylene UV barrier films, standard LDPE films can lose up to 30% of their tensile strength after just 500 hours of accelerated UV exposure. In practical terms, this translates to a film that becomes brittle, yellows, and tears apart within weeks of outdoor storage — often long before the protected material ever reaches the job site.
The consequences compound quickly. A degraded film may adhere more aggressively as UV exposure accelerates the crosslinking of the adhesive, making removal difficult and risking surface contamination. Conversely, some films lose adhesion entirely, peeling away and leaving the substrate exposed. Either outcome defeats the purpose of using a protective film in the first place.
How UV Stabilizers Work: The Science Behind UV Degradation Film Protection
UV stabilization is not a single technology — it is a layered system of additives, each targeting a different stage of the photodegradation process. Industrial-grade UV degradation film protection relies on two primary classes of chemistry working in combination.
UV Absorbers (UVA)
UV absorbers function as molecular sunscreens. They absorb ultraviolet radiation and convert it into harmless heat energy before it can attack the polymer chains. The most widely used class in polyethylene and polypropylene protective films is benzotriazoles, which absorb across the 280–400 nm range that overlaps most closely with the wavelengths responsible for polymer degradation.
According to Wellt Chemicals' analysis of UV absorbers for plastics, benzotriazole UV absorbers can extend the outdoor service life of plastic applications by up to 50% compared to unprotected equivalents. When properly formulated, some UV absorber systems enable materials to withstand exposure levels exceeding 80 kJ/m² without significant degradation — equivalent to many months of outdoor exposure in temperate climates.
Benzophenones are another commonly used UVA class, particularly in lower-cost formulations. They offer broad UVB and UVA absorption but are typically combined with other stabilizers to achieve higher performance levels. A well-formulated benzophenone system can improve material stability against photo-oxidation by 40–60% relative to unstabilized films.
Hindered Amine Light Stabilizers (HALS)
Where UV absorbers intercept radiation before it damages the polymer, HALS (Hindered Amine Light Stabilizers) operate at the radical level — after UV radiation has already initiated photodegradation. HALS act as radical scavengers, trapping and neutralizing the free radicals generated by UV exposure, thus interrupting the chain reactions that lead to embrittlement and failure.
As 3V Sigma's analysis of HALS technology notes, HALS offer a regenerative protection mechanism — they are not consumed as they neutralize radicals, which means they continue providing protection over long periods. High-performance HALS-treated materials can achieve up to 5,000 hours of accelerated weathering test performance, an exposure level that Achilles USA correlates with up to 10 years of outdoor service in certain film applications.
For surface protection films used in outdoor surface protection of construction materials, the most effective formulations combine UV absorbers with HALS in a synergistic system. The UVA layer handles the first line of defense; HALS mops up the free radicals that get through. This dual approach is what separates a 3-month-rated film from a 6- to 12-month rated weatherable film.
Additional Stabilization Technologies
Advanced multilayer film architectures can incorporate additional protective elements:
- Antioxidants (such as phosphites and phenolic antioxidants) protect against thermal oxidation during processing and service, complementing UV protection during extended outdoor storage.
- Titanium dioxide (TiO₂) particles act as inorganic UV blockers, scattering and reflecting UV radiation at the film surface level.
- Dedicated UV-blocking outer layers in co-extruded multi-layer films concentrate the UV protection chemistry where it is most needed, while the inner layers retain other functional properties such as controlled adhesion.
Outdoor Durability Ratings: What 3, 6, and 12 Months Really Mean
The outdoor durability rating on a UV-resistant protective film indicates the expected service life under direct sun exposure before the film begins to degrade, lose adhesion, or become difficult to remove. These ratings are not arbitrary — they are validated through a combination of accelerated weathering tests (using xenon-arc or UV fluorescent lamp equipment) and real-world outdoor exposure data.
According to Pregis's construction protective film range, UV protection films for outdoor storage of glass, windows, and construction products are available with durability ratings from 3 days up to 9 months. Plashield's UV-resistant PE protective film achieves 6+ months of outdoor weatherability, while Electro Tape's PE surface protection film offers a 90-day rated product for windows and non-porous surfaces.
It is important to understand that accelerated weathering test hours cannot be converted to a single universal "months of outdoor exposure" figure. As Q-Lab explains in their weathering test methodology guide, real-world performance depends on geographic location, climate, UV intensity, temperature cycles, and the specific material. A film rated for 6 months in a temperate northern European climate may degrade faster in a high-UV environment such as the Middle East or Southern Europe. Buyers should always verify durability ratings against the intended deployment geography.
UV Durability Ratings by Film Type and Stabilizer System
The table below summarizes the typical outdoor durability performance of protective films based on polymer type and stabilization approach. These figures represent industry-observed ranges under standard mid-latitude outdoor exposure conditions.
| Film Type | Stabilizer System | Typical Outdoor Durability | Key Performance Notes | Common Applications |
|---|---|---|---|---|
| Standard LDPE / LLDPE | None | 2–6 weeks | Rapid embrittlement; adhesive residue risk; not suitable for outdoor storage | Indoor transport, short-term handling only |
| PE (Value Grade) | Benzophenone UVA only | 60–90 days | Moderate UV protection; suitable for supervised, short outdoor exposure | Window glazing, aluminum extrusions (short-term yard storage) |
| PE (Mid-Range) | Benzotriazole UVA + low-MW HALS | 3–6 months | Good resistance to brittleness; consistent adhesion; clean removal | Composite panels, roofing sheets, sandwich panels |
| PE (High-Performance) | Benzotriazole UVA + polymeric HALS (e.g., LS-944) | 6–12 months | Excellent long-term stability; minimal yellowing; clean adhesive release after full exposure period | Aluminum profiles, curtain wall systems, fabricated metal panels, pre-installed window frames |
| PVC (Stabilized) | HALS + antioxidant system | Up to 24 months | Very high durability; used for permanent or semi-permanent outdoor protection; higher cost | Long-term construction site protection, roofing membranes |
| Multi-layer co-extruded PE | Dedicated UV-blocking outer layer + HALS inner layer | 9–12+ months | Best-in-class performance; uniform protection; low adhesion drift over time | High-value facade materials, pre-finished metal, specialty glass |
Sources: Pregis, Electro Tape, Achilles USA, Ecochem HALS Guide
Construction Applications: When Outdoor Surface Protection Is Non-Negotiable

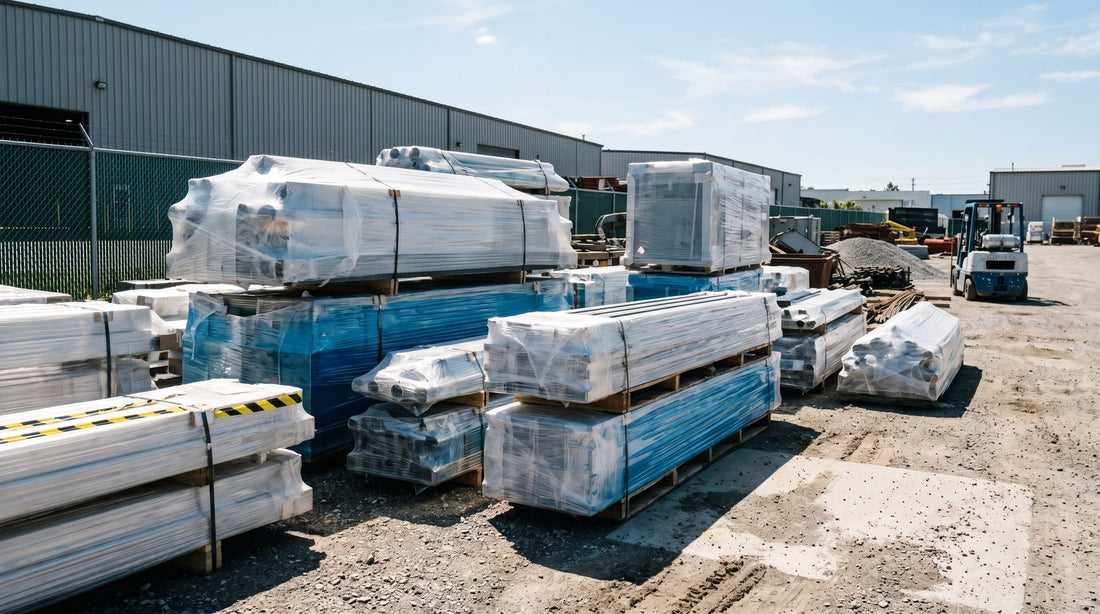

The construction sector is the primary environment where outdoor surface protection films face their most demanding UV challenges. Project timelines rarely go to plan. Materials ordered months in advance may sit in storage yards, on flatbed trailers, or stacked on scaffolded structures for weeks or months beyond initial estimates. During that time, the protective film must do its job — every day, in every weather condition.
Aluminum Profiles and Extruded Sections
Anodized and powder-coated aluminum profiles are among the highest-value substrates that depend on reliable UV-resistant protective film. These profiles are often manufactured and shipped months before a building project enters its facade installation phase. During yard storage, an inadequate film will degrade under UV, become brittle, and either detach prematurely — leaving the profile surface exposed — or bond so aggressively to the coating that removal causes surface damage. A 6–12 month rated UV-resistant film eliminates this risk and protects the value of the finished aluminum product from factory to site.
Composite and Sandwich Panels
Insulated sandwich panels and aluminum composite material (ACM) panels are pre-finished at the manufacturing stage. The factory-applied protective film must survive the entire supply chain: manufacturing, transit, laydown on site, and waiting for installation. In large-scale commercial or industrial construction, panels may wait 3–6 months between delivery and installation. A weatherable protection film rated for this period ensures the factory finish beneath arrives at the installer's hands in the same condition it left the production line.
Window and Curtain Wall Systems
Pre-glazed window units and curtain wall cassettes are particularly vulnerable because they often remain installed but exposed in unfinished buildings — exposed to full UV radiation but with no ability to remove the protective film until the building envelope is complete. Pregis offers UV-rated glass protection films specifically in 3-month, 6-month, and 12-month variants to address this exact use case. Choosing the wrong rating — a 3-month film left in place for 9 months — will result in adhesive failure and significant remediation costs.
Pre-Finished Metal Cladding and Roofing
Steel and aluminum roofing coils and flat sheets often arrive at the job site with protective film already applied by the coil manufacturer. As New Tech Machinery's guidance on temporary protective film usage highlights, industry practice recommends that substrates with applied protective film be used within 6 months, with careful control of storage temperature and UV exposure. For projects that cannot meet that timeline, a UV-stabilized film with an extended durability rating provides the necessary buffer — but the correct film specification must be selected at the outset, not retrofitted after degradation has already begun.
Structural Glazing and Specialty Glass
High-performance architectural glass — low-e coated, laminated, or tempered — requires protection films that will not interact with the glass surface or coatings under UV-driven thermal cycling. A degraded film that bonds to a low-e coating or leaves adhesive residue on tempered glass creates a problem that cannot be corrected in the field. Weatherable protection films with a validated clean-release profile across the full intended outdoor service period are a prerequisite for these applications.
Selecting the Right UV-Resistant Protective Film: Key Considerations
Not all outdoor situations are equal, and film selection requires matching the product's UV rating to the actual expected exposure duration — with margin. The following parameters should drive the specification decision:
- Expected outdoor exposure duration: Add a safety buffer of at least 20–30% to your estimated storage or installation period. Project delays are the rule, not the exception.
- Geographic UV intensity: Higher latitudes and lower altitudes mean lower UV intensity; equatorial, high-altitude, and highly reflective environments (snow, water, light-colored aggregate yards) increase effective UV load.
- Substrate surface type: Adhesion requirements vary by surface finish (anodized, painted, polished, textured). The film's adhesive system must maintain performance across the full UV exposure period without adhesion creep.
- Removal conditions: Films that have been UV-exposed must still remove cleanly. High-performance HALS-stabilized films are formulated to maintain stable adhesion levels — not increasing over time — so that removal after 9 or 12 months remains as clean as removal after 2 weeks.
- Regulatory and project requirements: Some construction contracts or material warranties specify film type, application pressure, or maximum application duration. Confirm film specification against project documentation.
The Cost of Getting It Wrong
The price differential between a standard PE protective film and a 6–12 month UV-resistant protective film is modest relative to the value of the substrate being protected. Aluminum facade profiles, pre-finished composite panels, and architectural glazing represent significant material costs. A degraded film that requires manual adhesive residue removal from a large curtain wall installation can easily cost more in labor than the entire film budget for the project — and may still leave surface marks that trigger warranty claims or material rejection.
UV-resistant film is not a premium upgrade — it is the baseline specification for any material that will see outdoor exposure for more than a few weeks. The question is not whether to use UV-stabilized film, but which durability rating matches the actual project timeline.
ALU's UV-Resistant Film Range
ALU manufactures a comprehensive range of surface protection films engineered for industrial and construction applications, including UV-stabilized grades rated for outdoor exposure from 90 days to 12 months. Each film in the range is formulated with verified UV stabilizer packages — UV absorbers, HALS systems, or combined dual-layer approaches — to deliver consistent protection across the full rated service period.
Whether you are specifying film for aluminum extrusion yards, composite panel warehouses, pre-installed glazing systems, or finished metal cladding, our technical team can recommend the correct grade and durability rating for your specific substrate, adhesion requirement, and exposure timeline.
Explore the full range of ALU surface protection films at our product collection, or contact our technical team to discuss your specific outdoor surface protection requirements. We work directly with manufacturers, distributors, and construction contractors to specify the right film for every application.
