Deep Drawing Protective Film
A high-elasticity protective film formulated for deep drawing operations. Its elongation and adhesion properties allow it to stretch with the metal as it forms, protecting the finished surface from tooling marks while still peeling cleanly after fabrication.
Key Features
- High elasticity for tight and stable wrapping Dust and moisture protection Transparent and easy to identify products Manual and machine-grade options Applications: Used for wrapping pallets, bundling aluminum products
- Protecting loads during logistics and warehousing
Technical Specifications
| Base Material | PE / PET film with acrylic or silicone adhesive (customized per application) |
| Standard Thickness | 30 μm – 150 μm (custom on request) |
| Adhesion Level | Light (3-8 g/cm), Medium (10-25 g/cm), Heavy (30-80 g/cm) |
| Temperature Range | -20°C to 80°C storage and application |
| Color Options | Transparent, blue, black, white, or custom color |
| Custom Printing | Logo, text, patterns — 1-4 colors, free for MOQ+ orders |
| Width | 100mm to 2000mm (slit to your specification) |
| MOQ | 500 rolls standard, 1,000 rolls custom-printed |
Full technical spec sheet with peel-strength curves, thickness tolerance, and application data is available on request.
Typical Applications

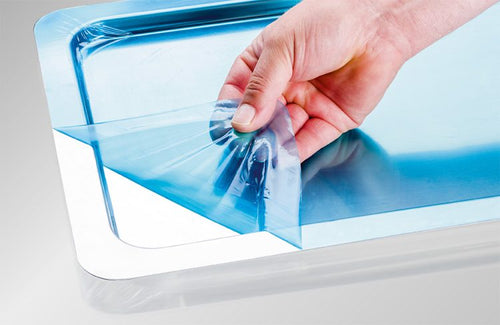

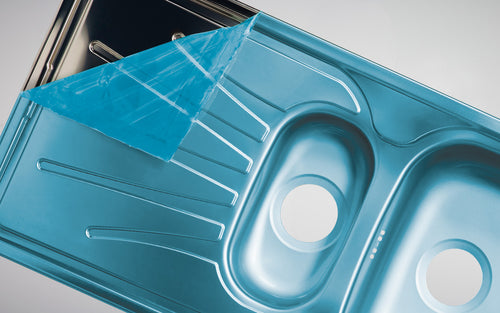

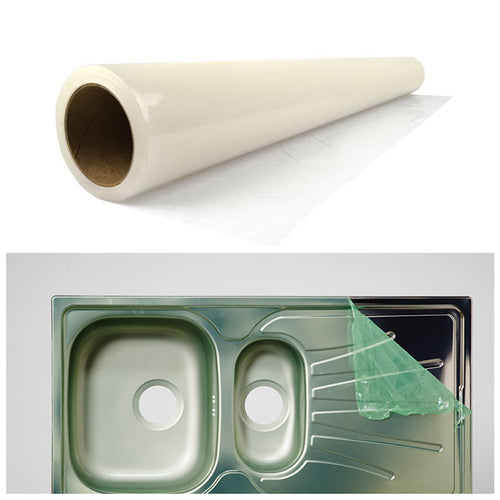

- Aluminum and stainless steel deep-drawn part manufacturing (kitchenware, aerospace, automotive)
- Hydroforming and stamping operations where surface finish must survive the forming process
- Precision sheet metal fabrication with premium visible finishes
- Contract manufacturers producing formed parts for consumer electronics and appliance industries
Frequently Asked Questions
How strong is the adhesive and can it be customized?
We offer multiple adhesion levels — light (peel force 3-8 g/cm), medium (10-25 g/cm), and heavy (30-80 g/cm) — matched to your surface type and application duration. Adhesion can be tuned to your specific substrate; send a sample and we specify the correct grade.
What thickness options are available?
Standard thicknesses range from 30 to 150 microns depending on the film series and substrate. Thinner films (30-60 μm) are typical for delicate finishes; thicker films (80-150 μm) provide heavy-duty protection during machining and transport.
Can I add my logo or custom printing?
Yes. We offer 1-4 color printing with logos, text, product identification, or patterns — free of charge for orders above the MOQ. This is common for branded product packaging or process identification (batch number, orientation arrows, warnings).
What is the minimum order quantity (MOQ)?
MOQ starts at 500 rolls for standard films and 1,000 rolls for custom-printed or specialty formulations. Sample orders below MOQ are available for evaluation and testing.
How long does production and shipping take?
Standard stock items ship within 3-5 business days. Custom orders (printing, non-standard sizes, specialty adhesives) require 15-30 days production. Sea freight to North America typically adds 25-35 days; air freight and DHL options available for urgent orders.
Request a Free Sample or Quote
Send us your material substrate, application, and required roll dimensions. We ship samples and detailed quotes to qualified manufacturing customers within 24 hours.
